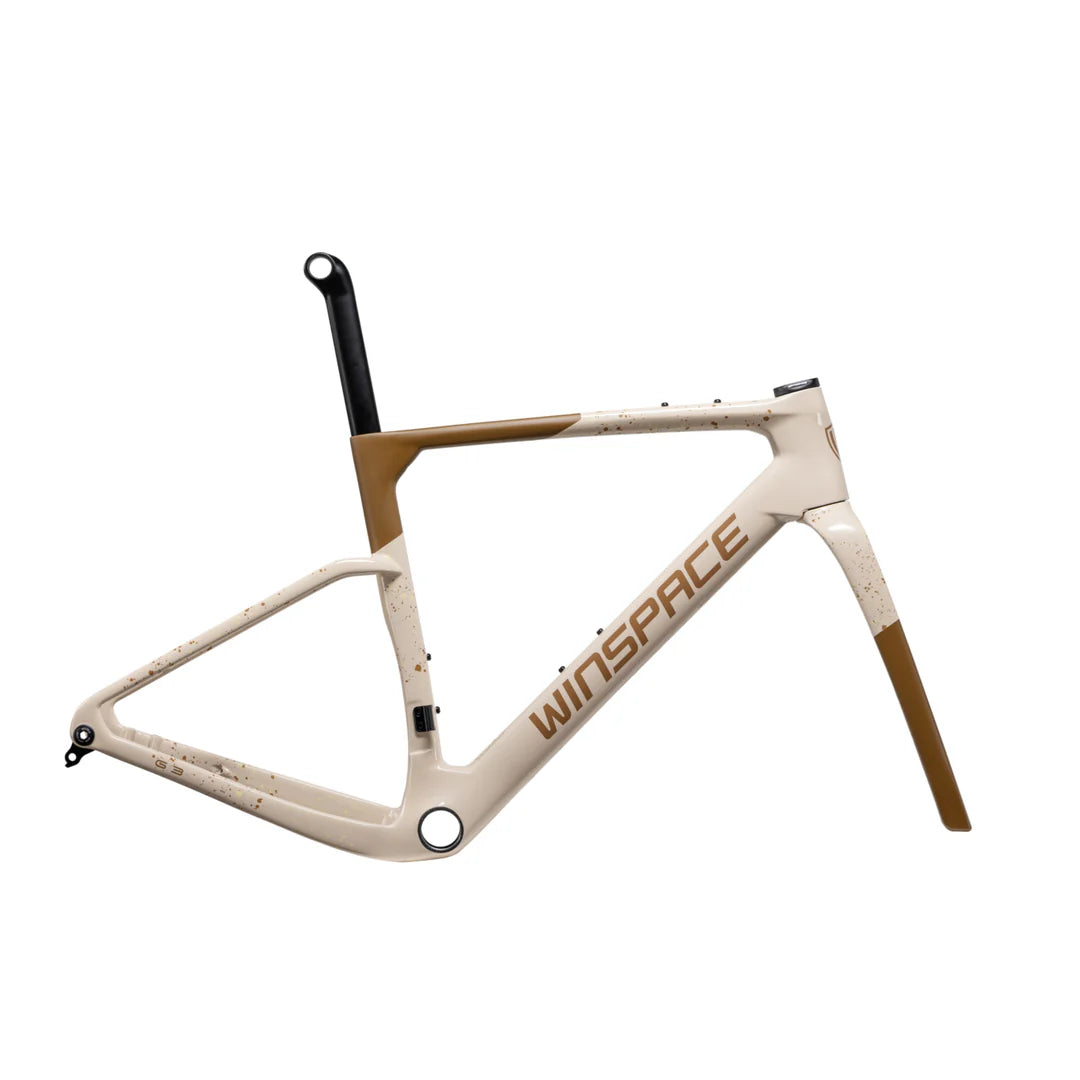

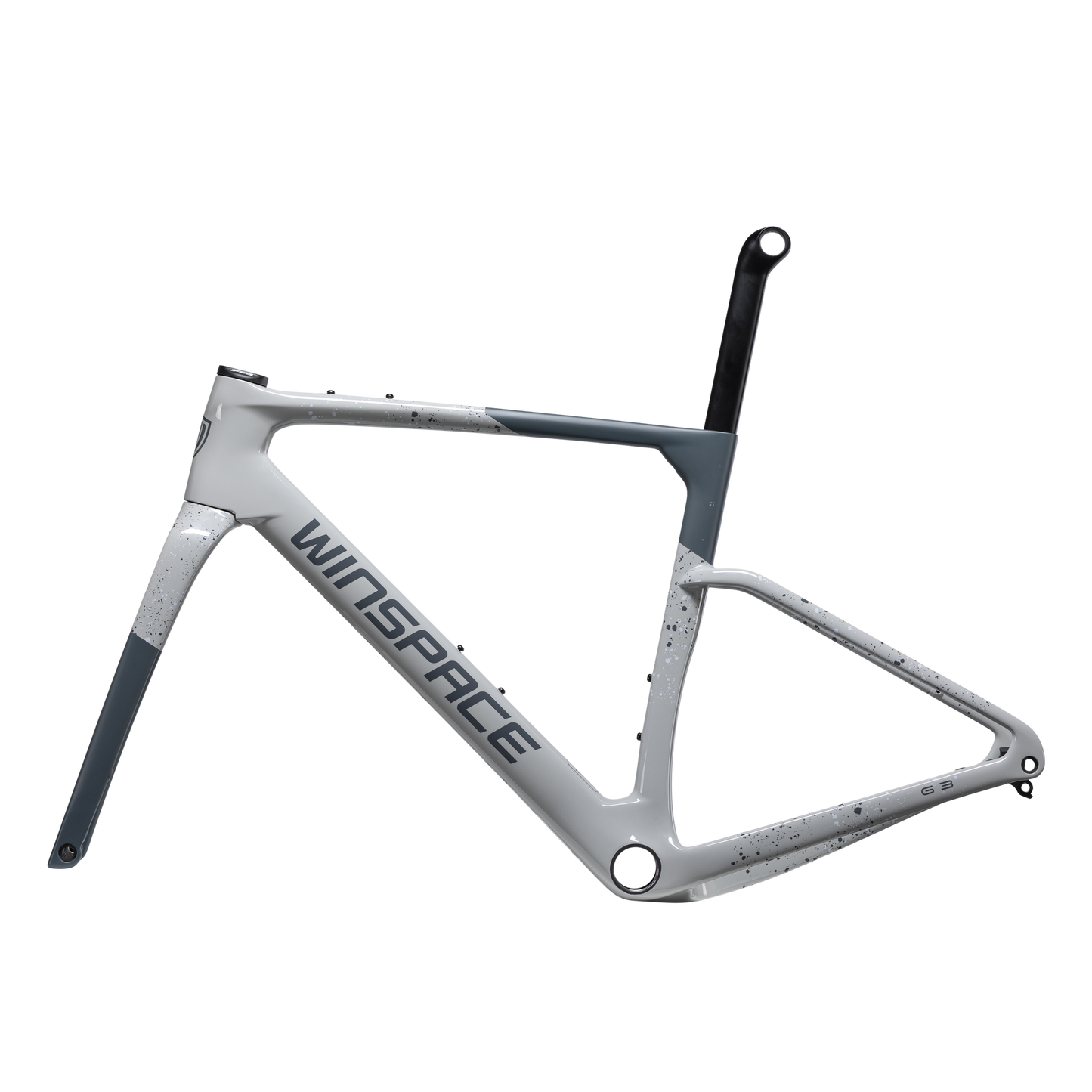

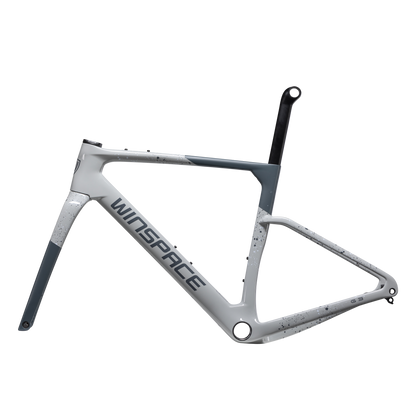

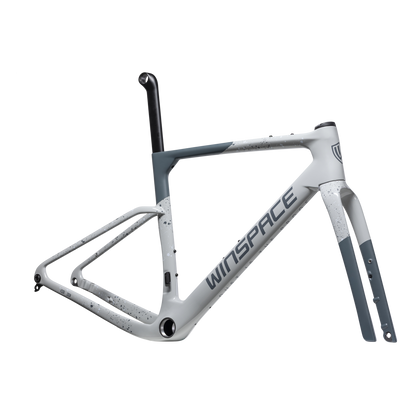

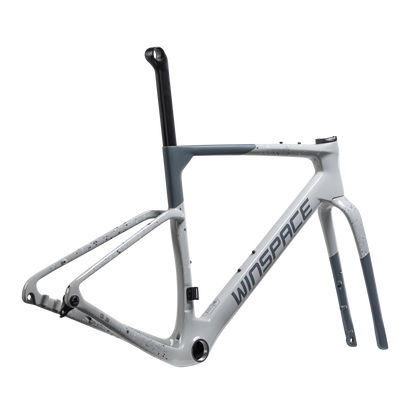

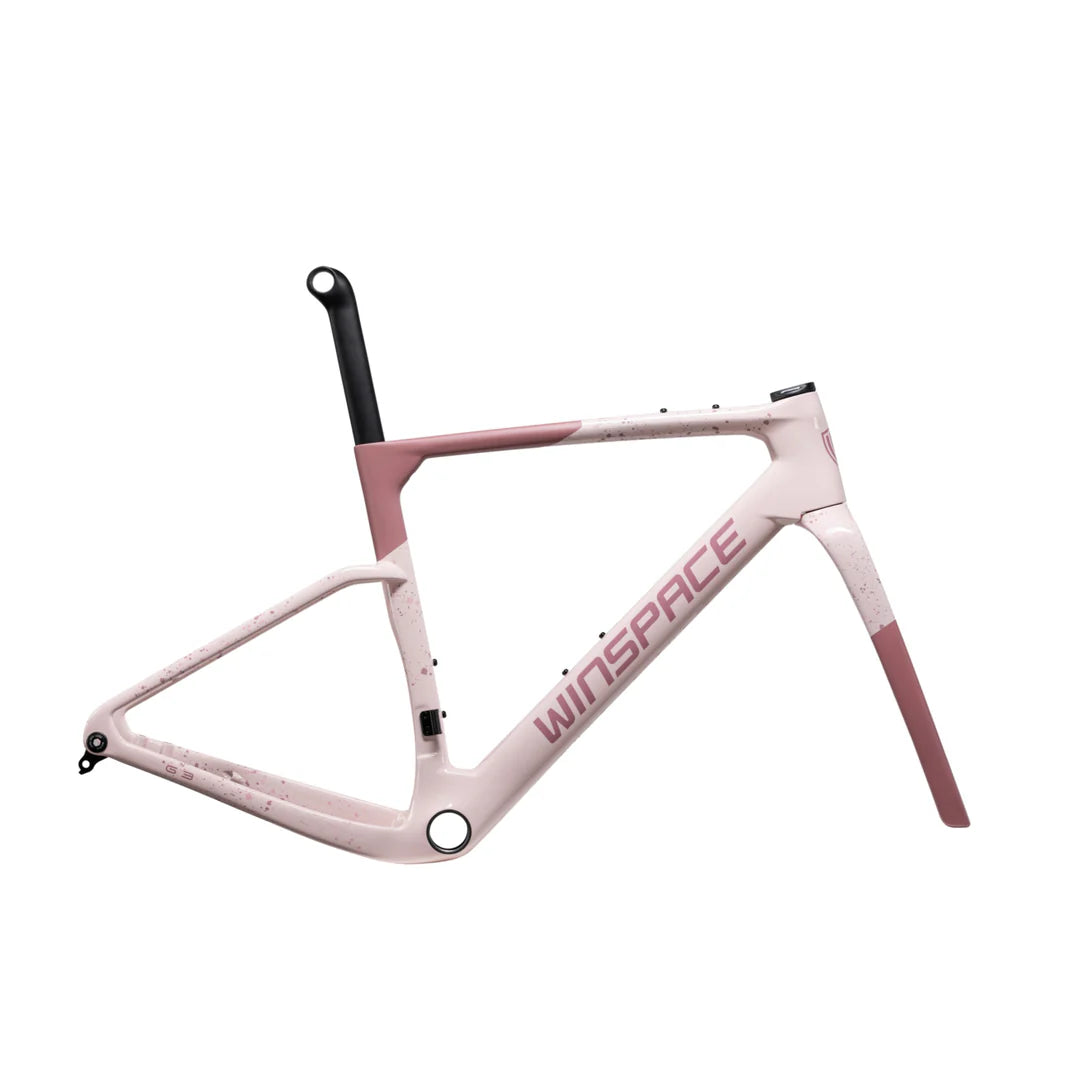

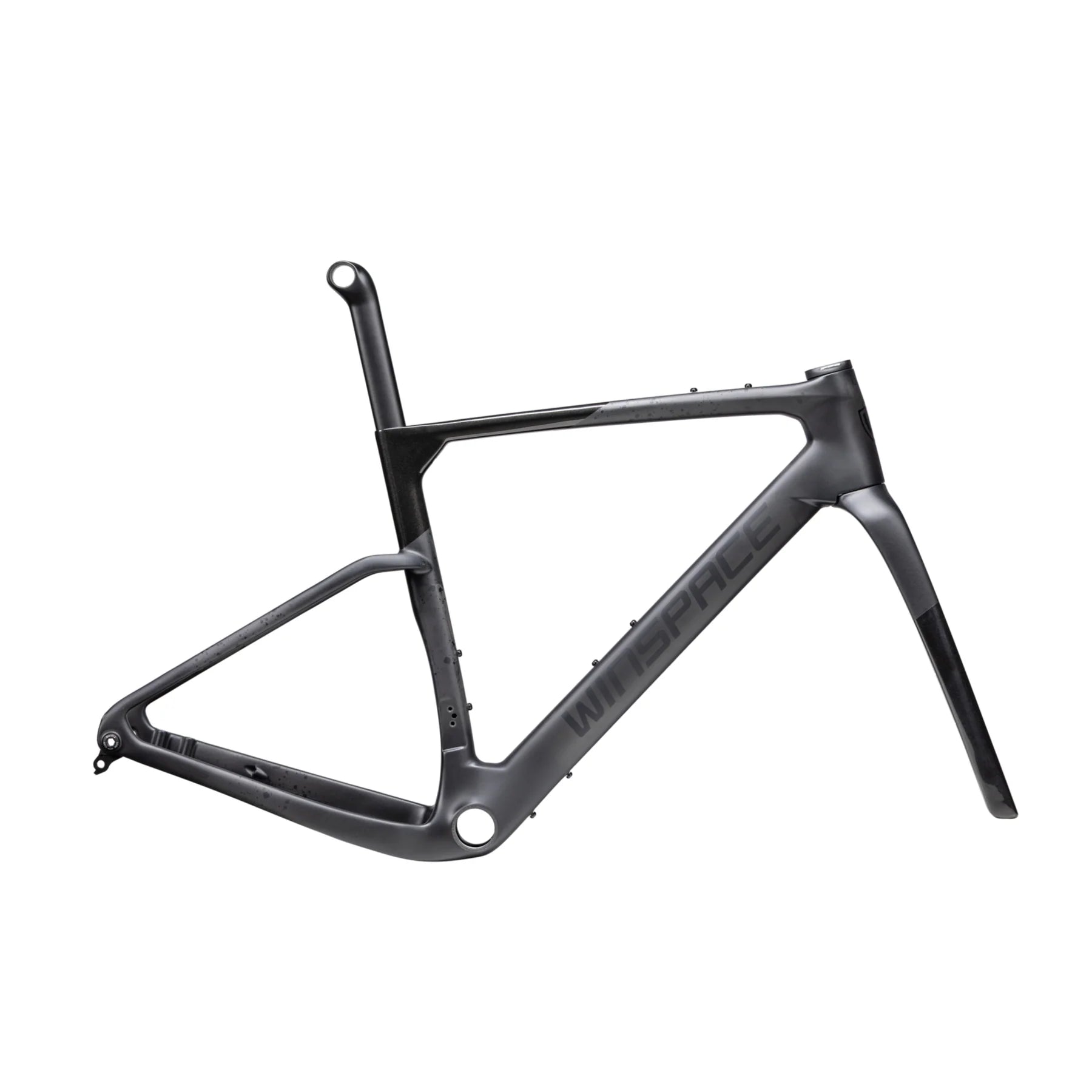

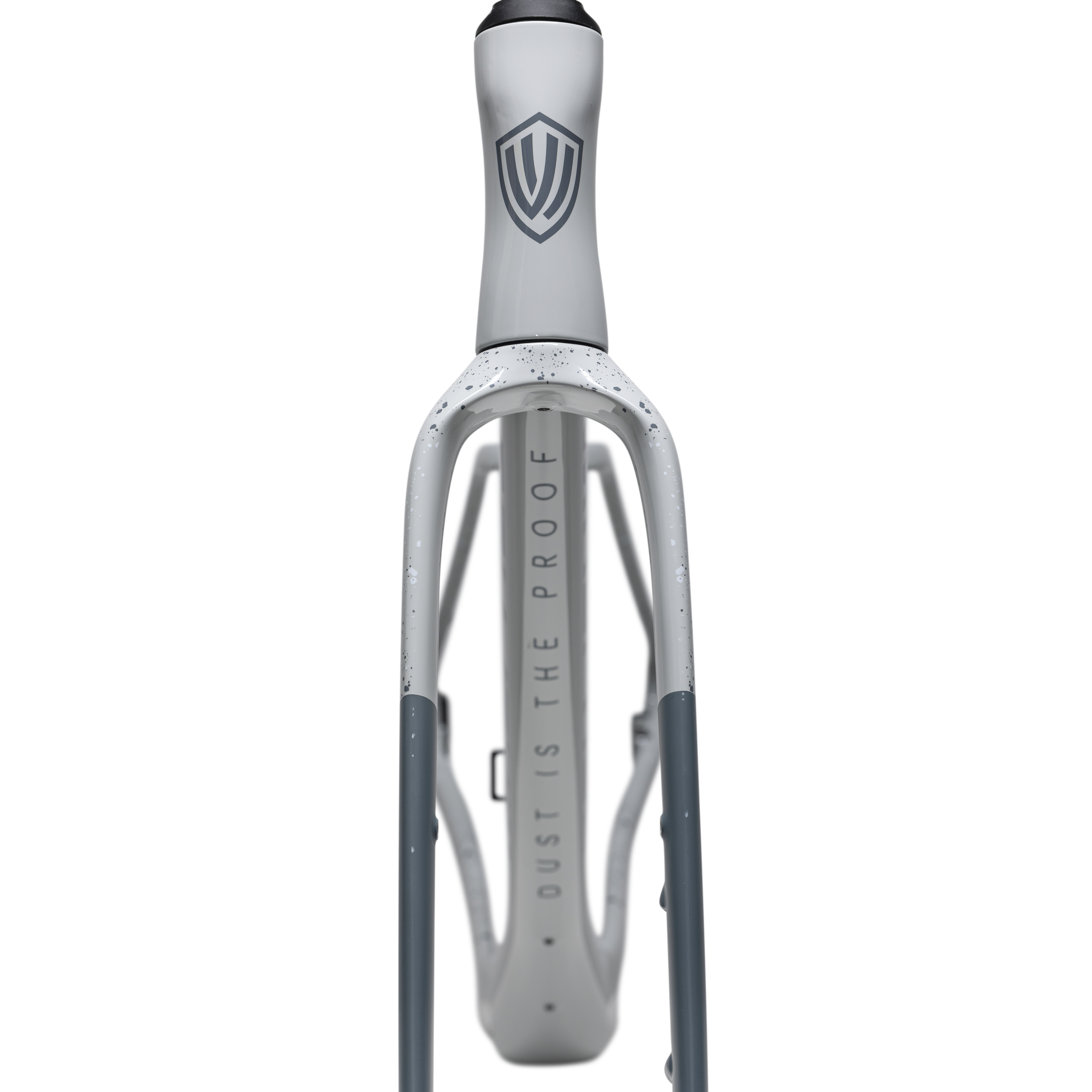

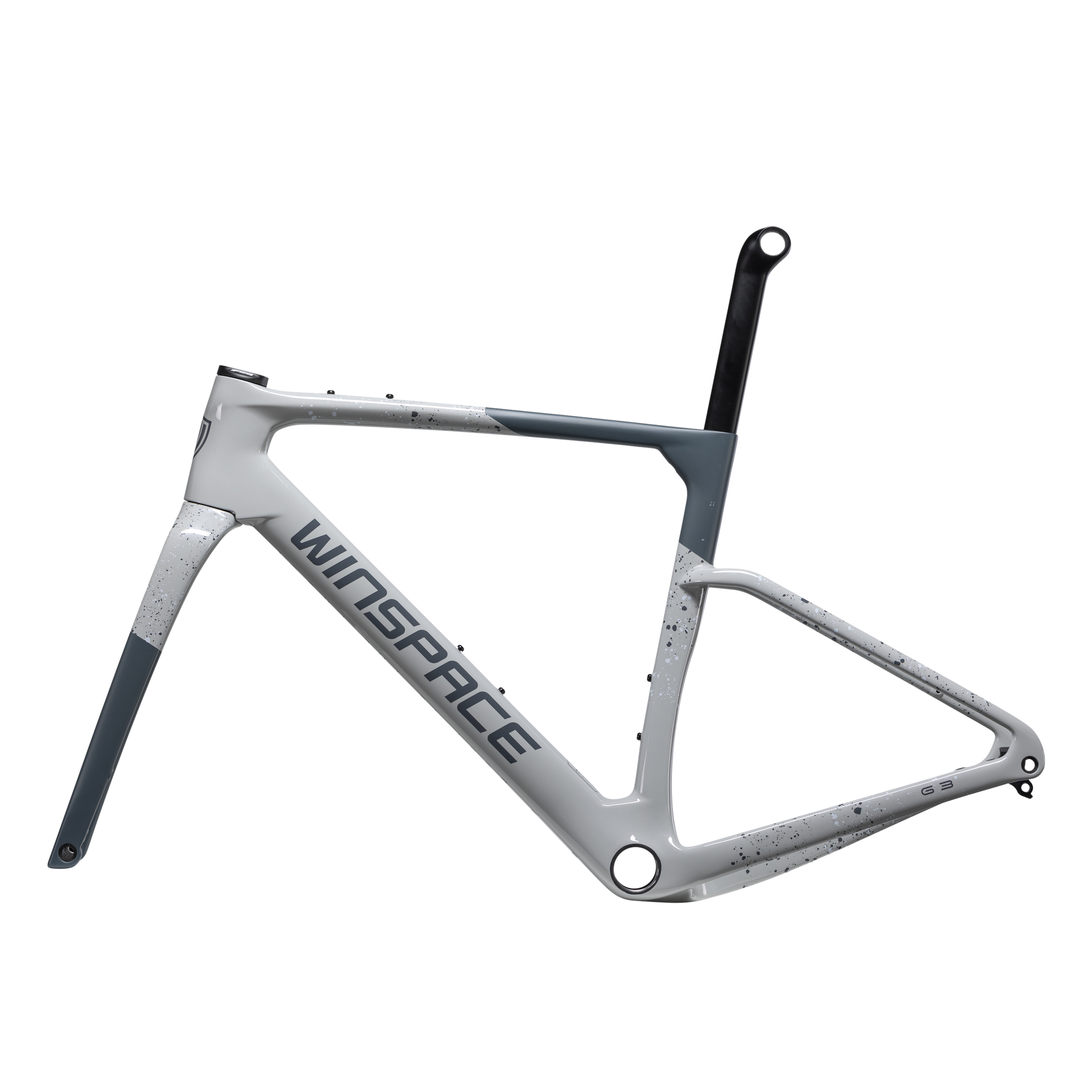

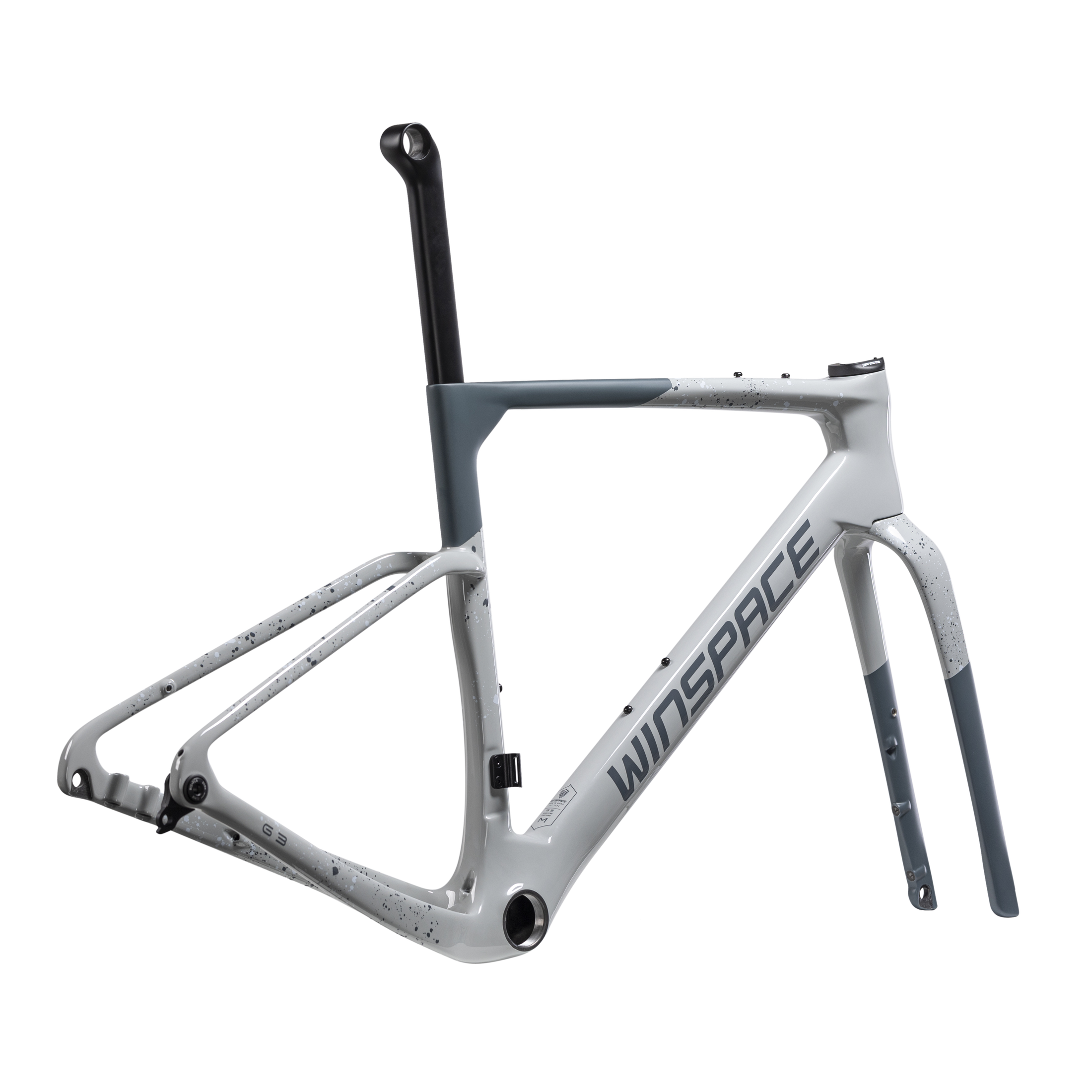

Winspace G3 Gravel Frameset
Winspace G3 Gravel Frameset
Note: Due to production capacity, L/XL sizes are projected for August-September orders, with S/XS following in September-October.
All dates are estimates and subject to change as we diligently ramp up production. Stay tuned!
*Please note that most frames are special order. Typical delivery is 1-2 weeks.
Description:
Size: XS/S/M/L/XL (440/460/480/510/540)
Carbon Fiber Grade: T700 + T800 + M40

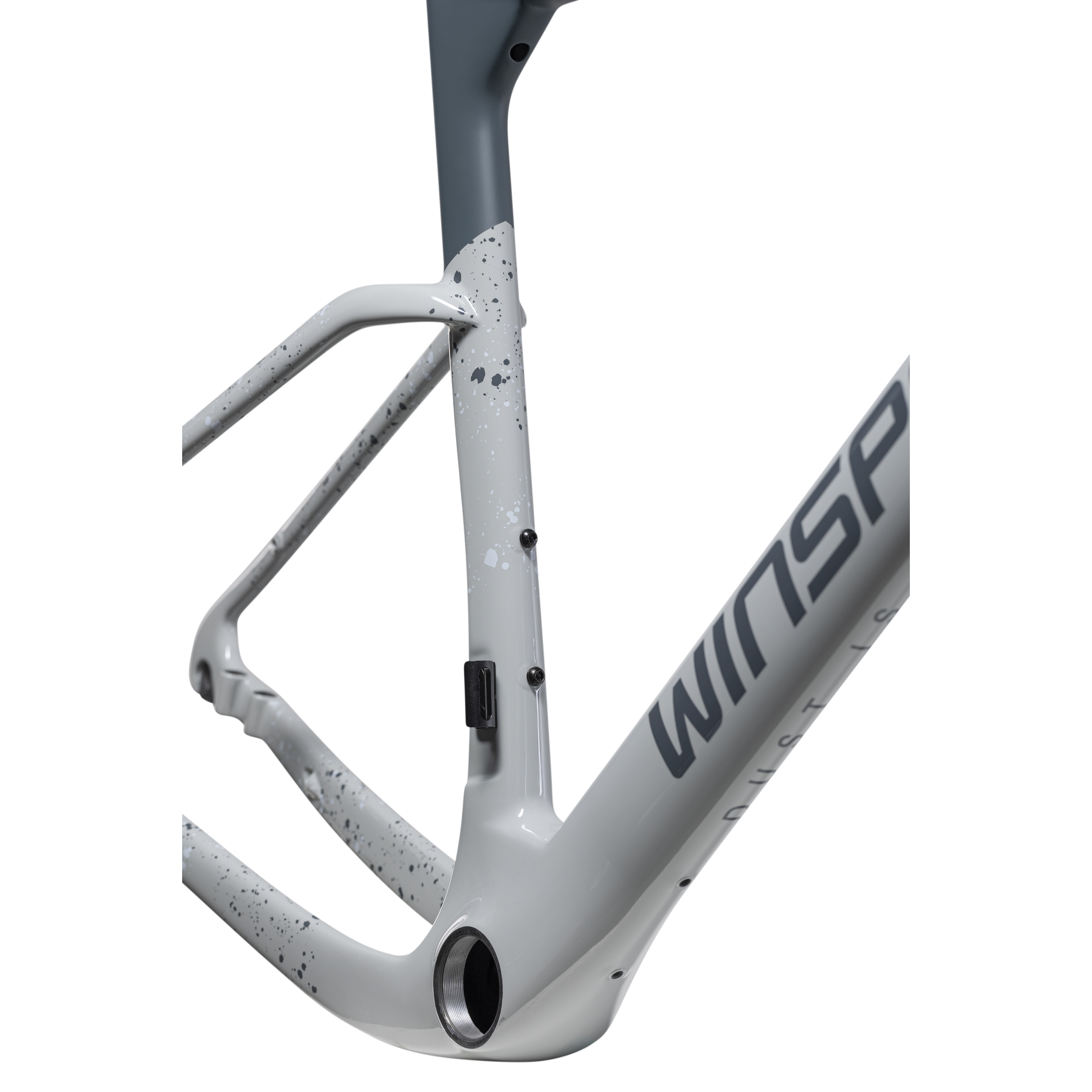

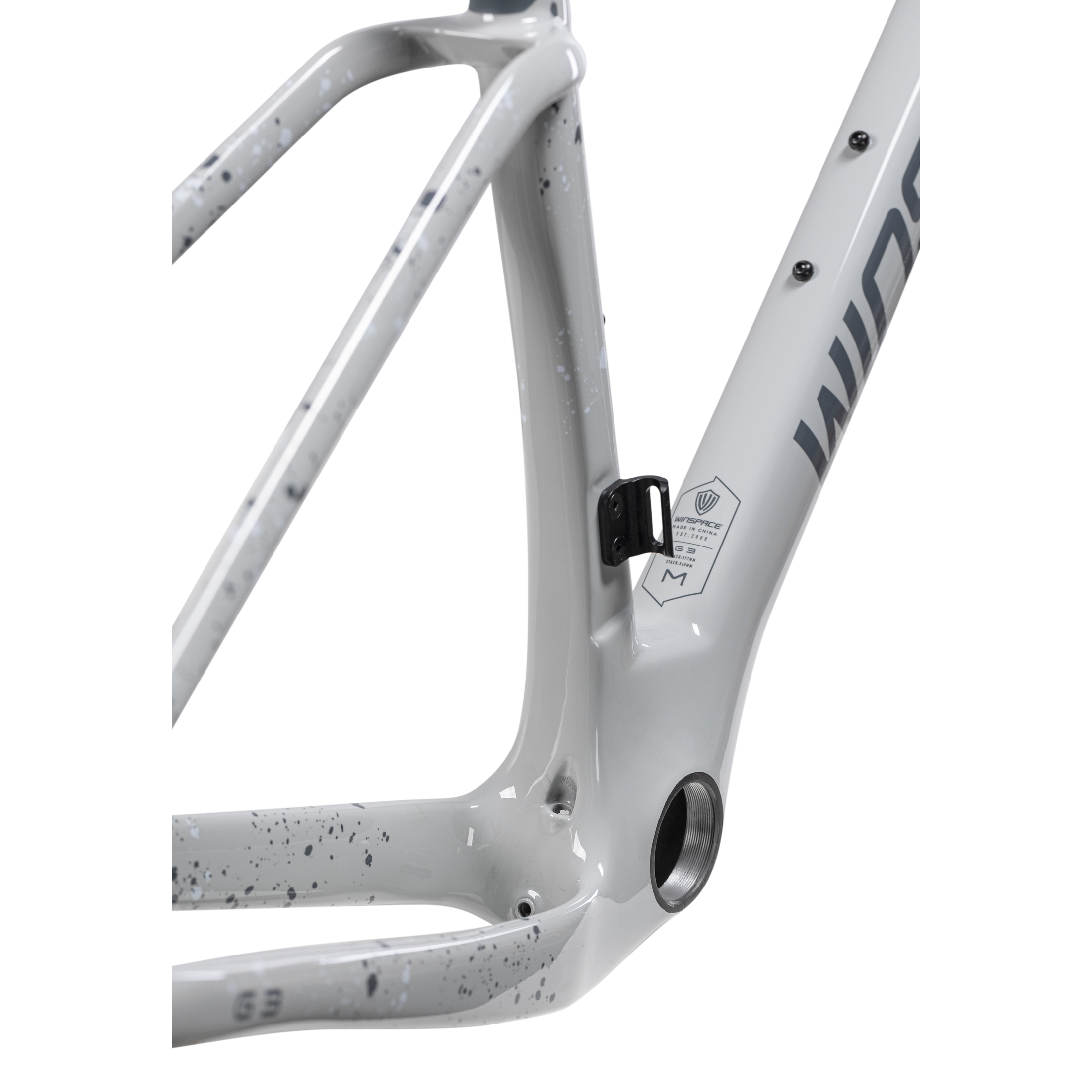

Bottom Bracket (BB): T47-68
Seatpost: Aero
Brake Type: Flat Mount Disc Brake
Axle Spacing : Front: 100mm, Rear: 142mm
Thru-Axle Dimensions:
Front: M12P1.0114L
Rear: M12P1.0163L
Max Tire Clearance: 700x50C

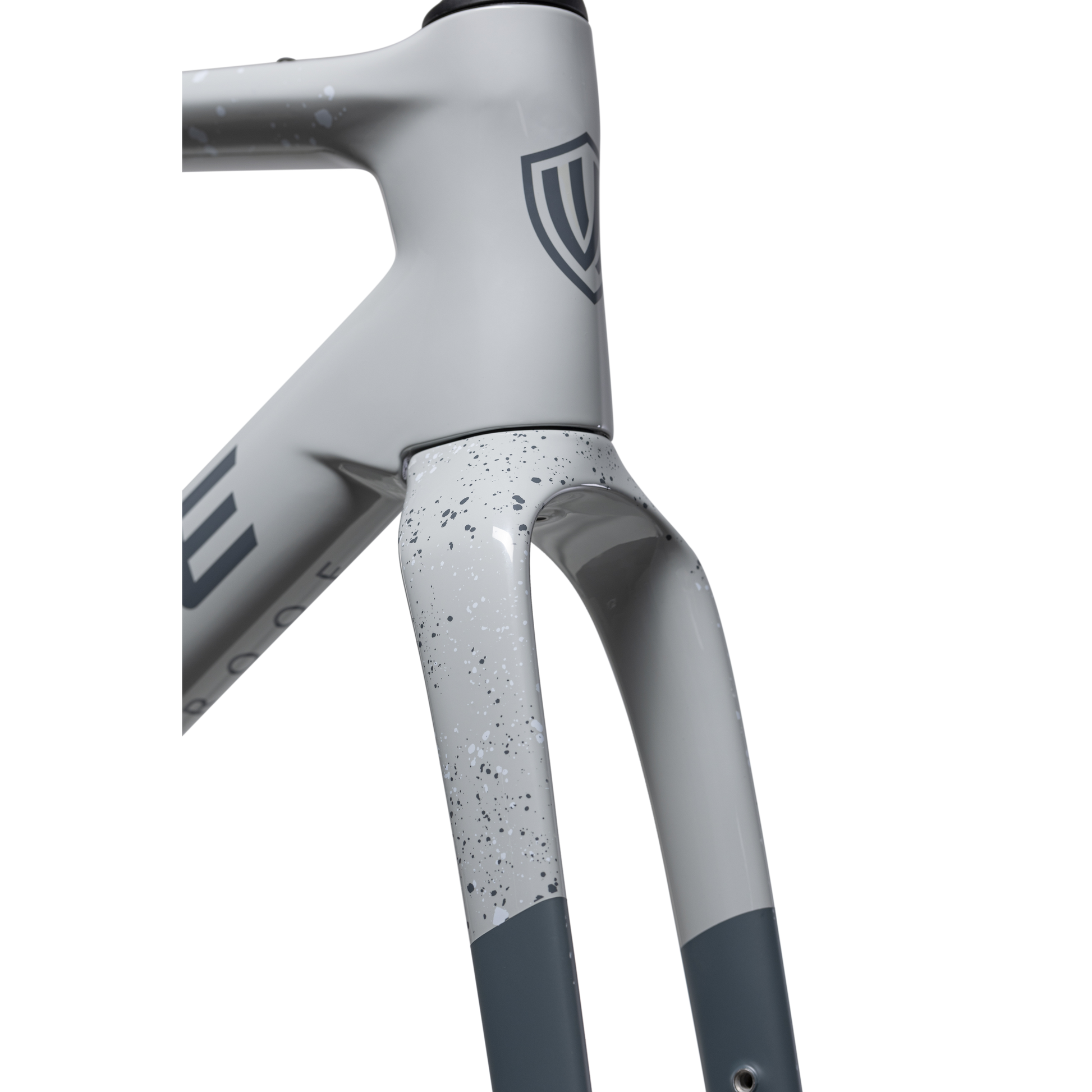

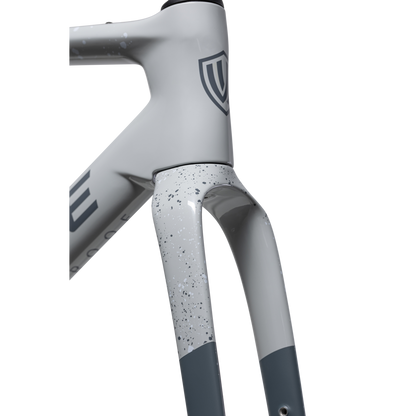

Headset: 1-1/2" / 1-1/2" (FSA ACR system)
Cable Routing: Internal
Raw Weight (approximate): Frame (M size): 950g, Fork: 450g, 360mm Seatpost: 130g
Finish: UD

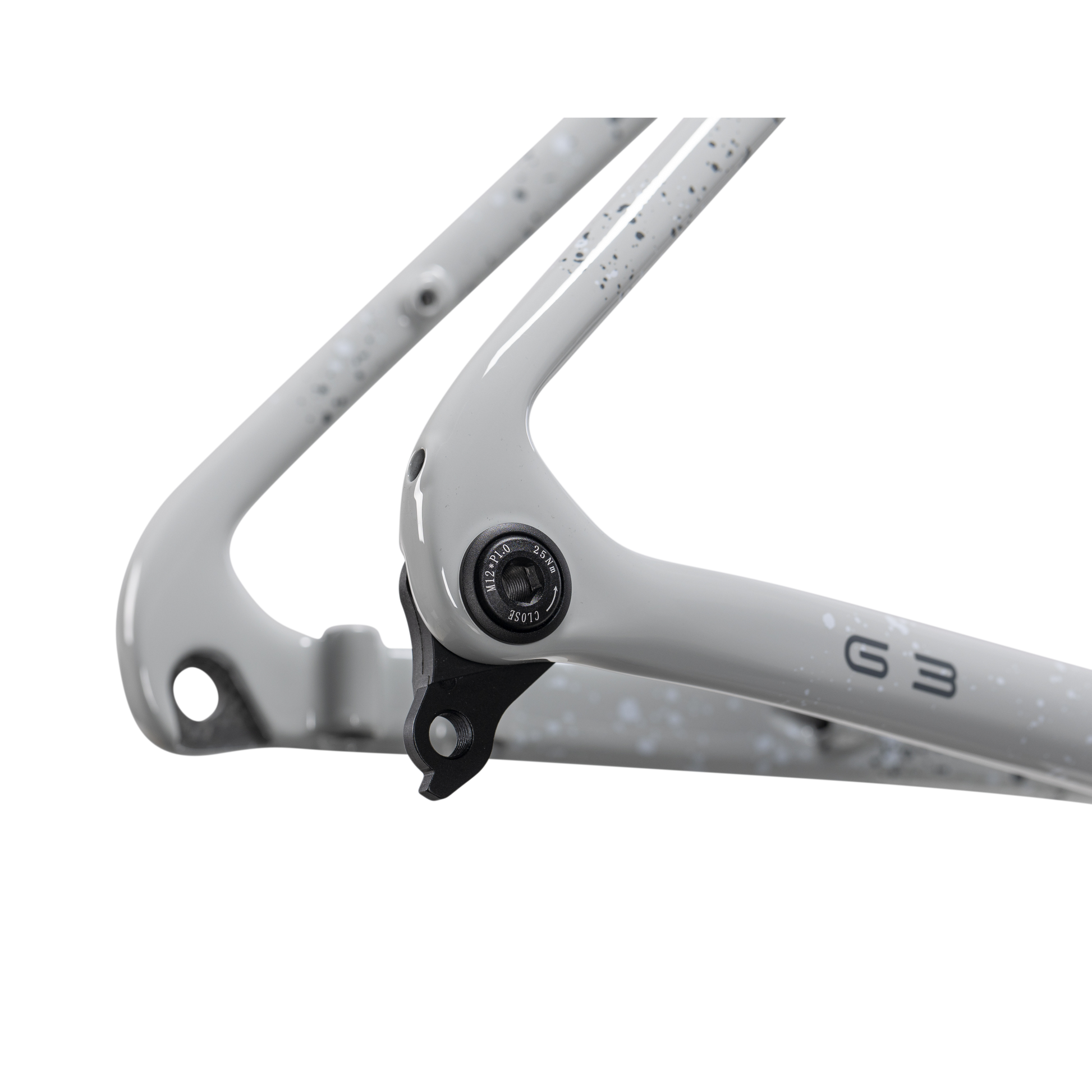

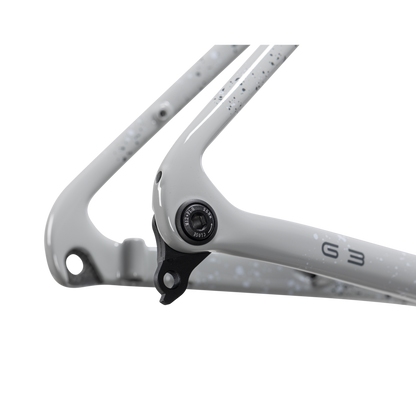

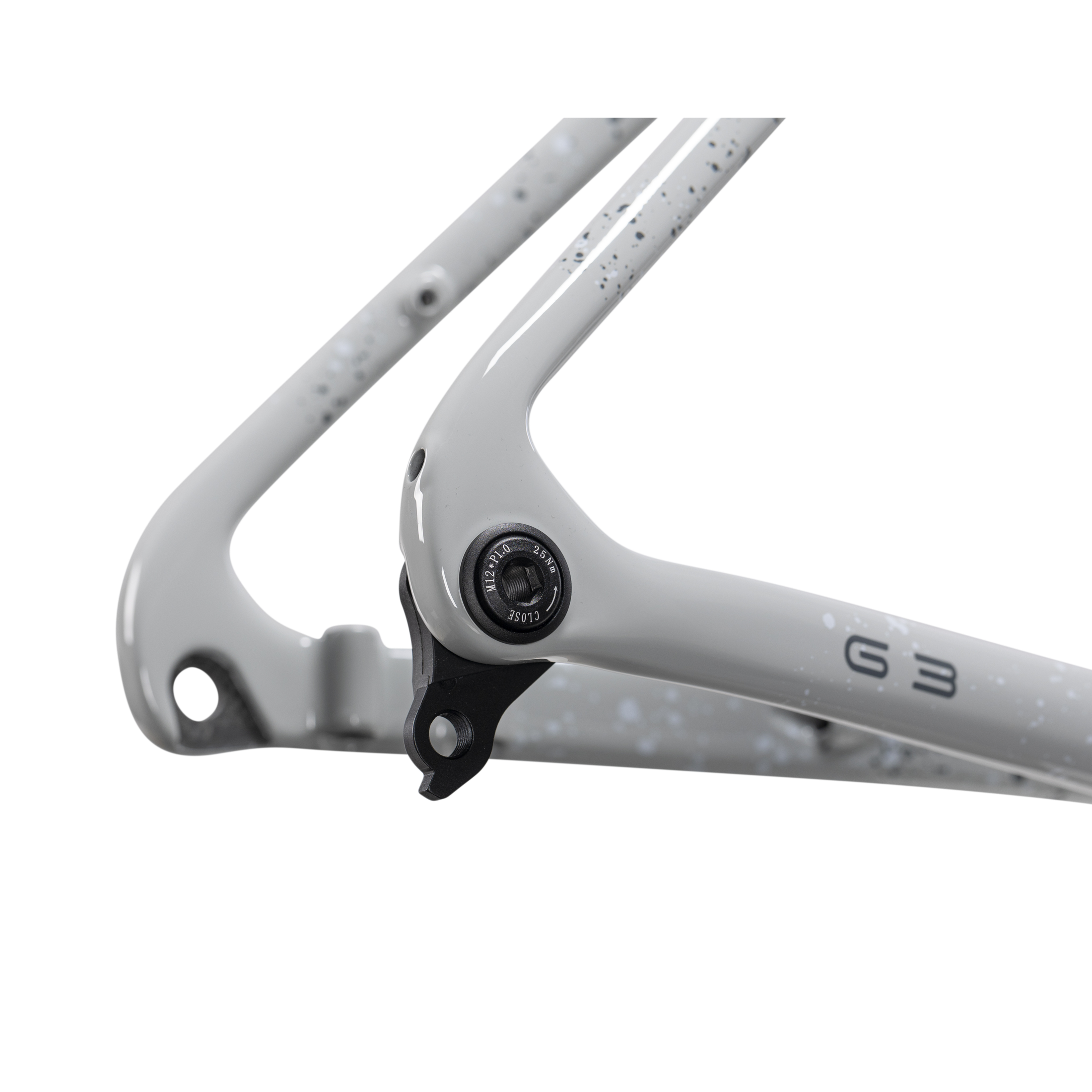

Derailleur Hanger: UDH
Brand: Winspace
