Specs

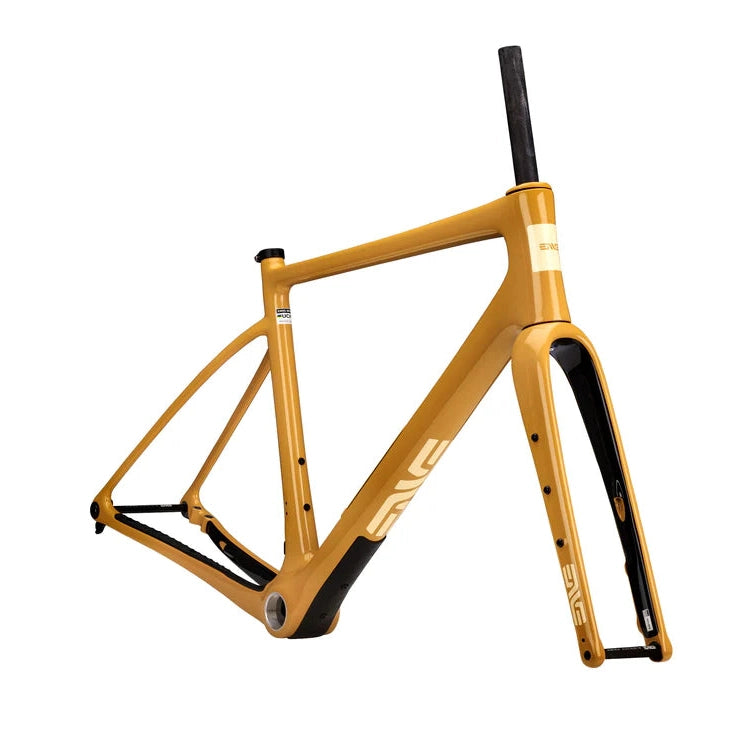

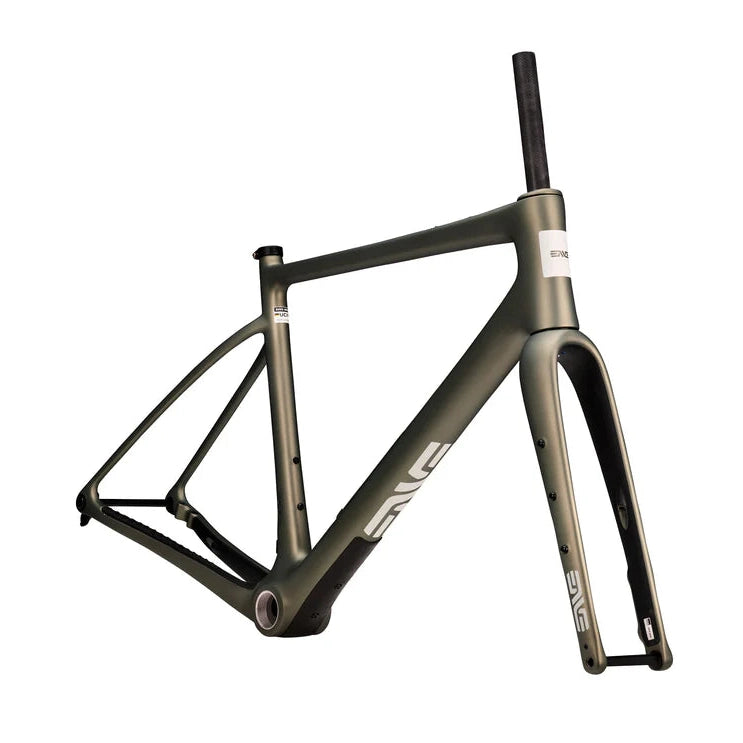

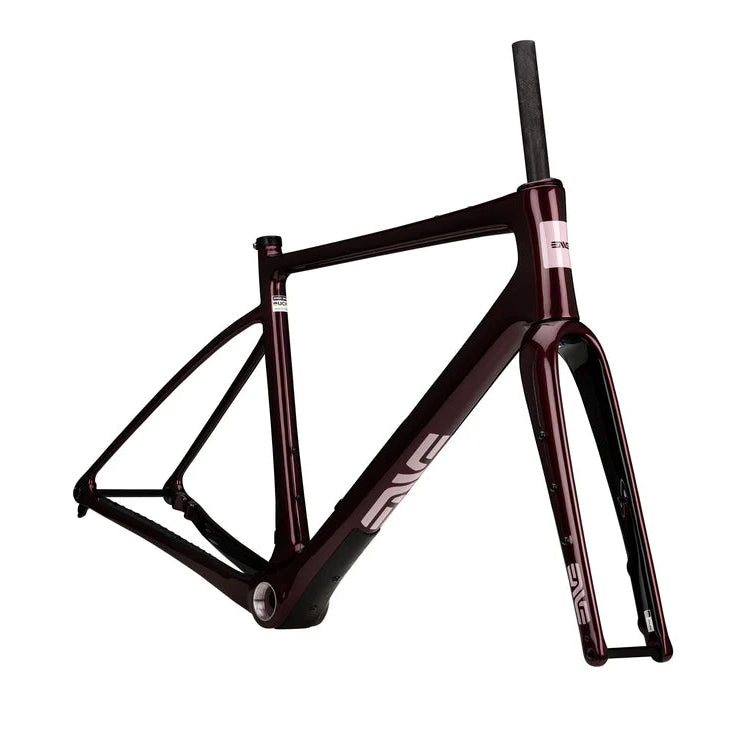

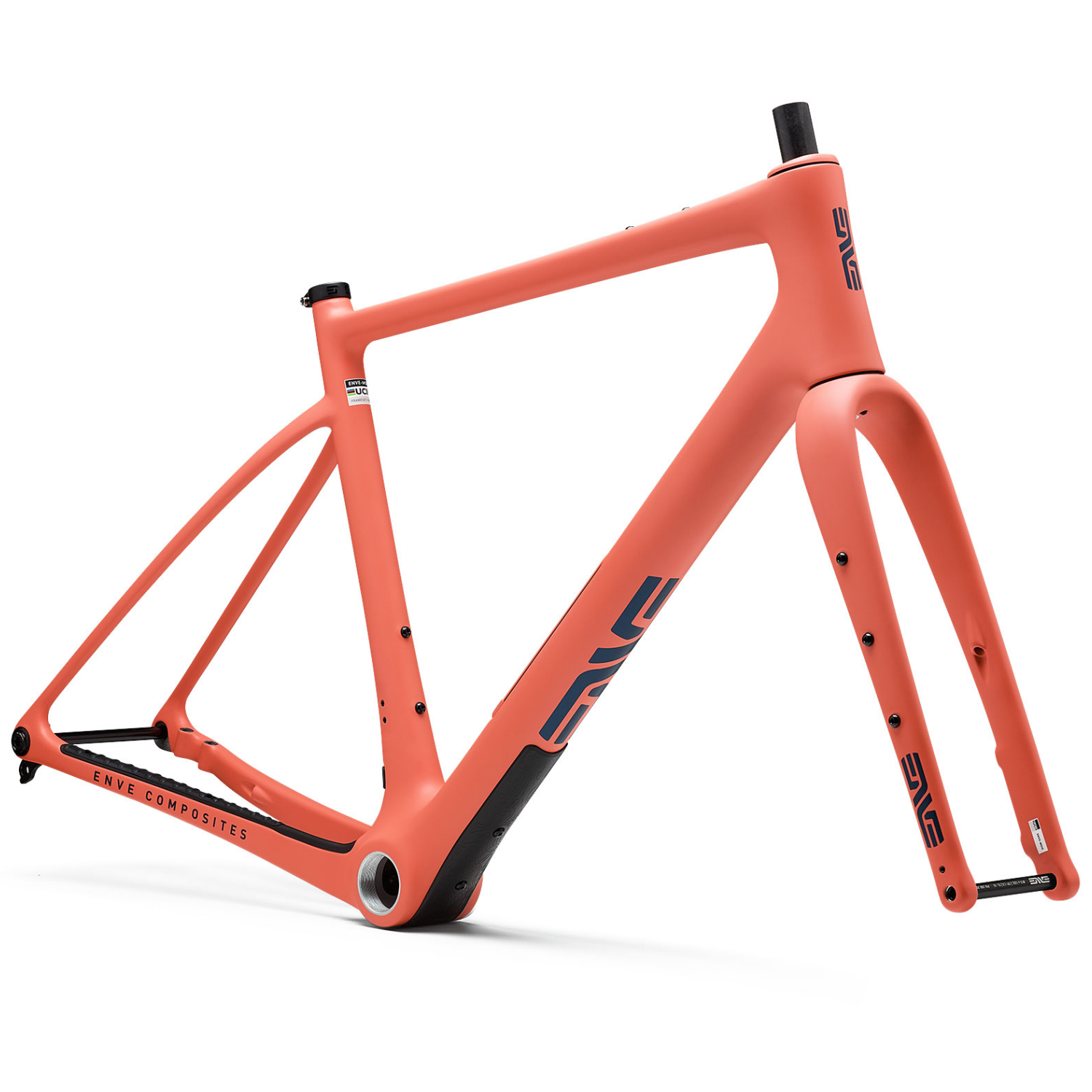

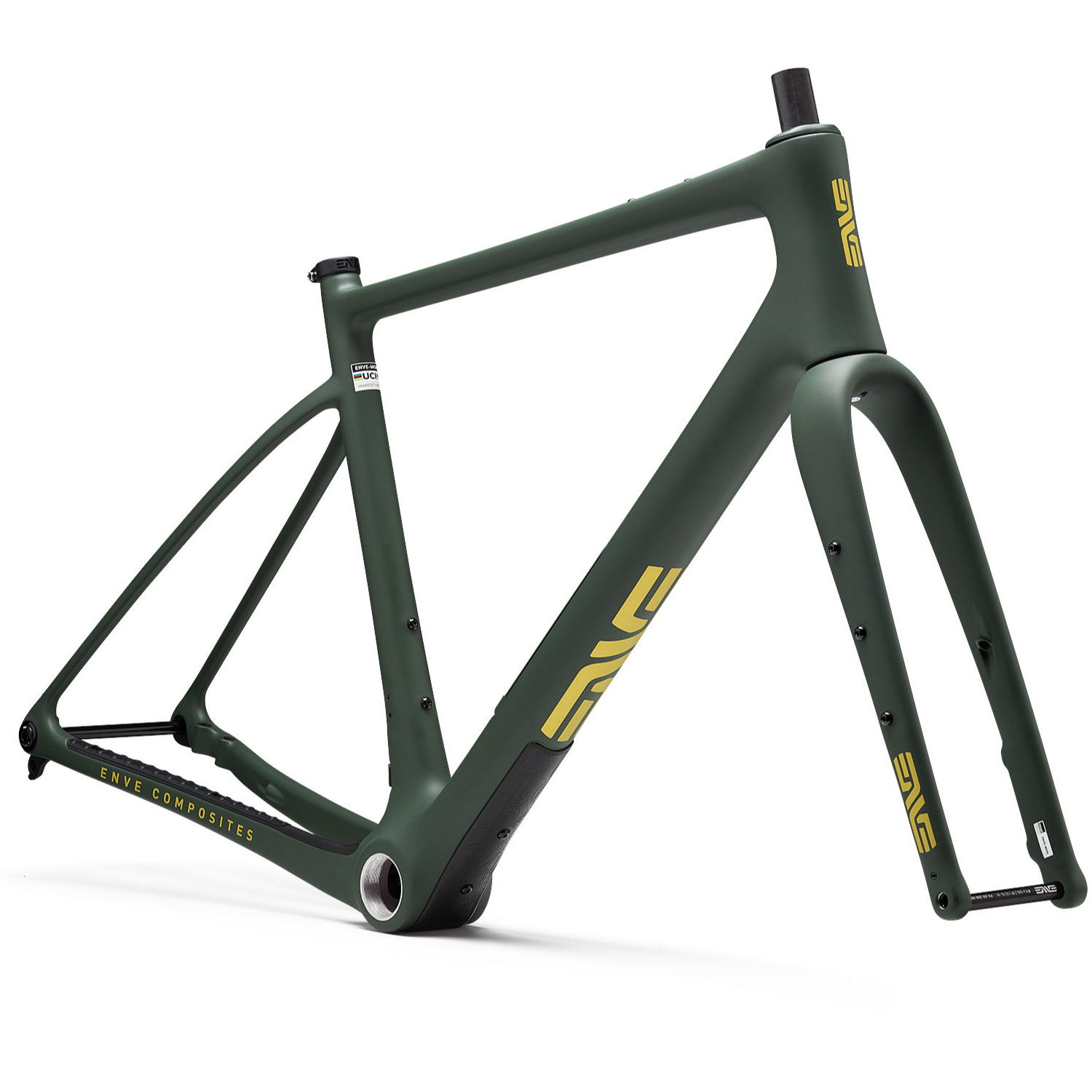

Frame Material: ENVE M.O.D Carbon, 12x142 Thru-Axle, Flat-Mount Disc, Threaded T47 BB, Internal Routing, Fender Compatible
Fork Material: ENVE M.O.D Carbon, 12x100 Thru-Axle, Flat-Mount Disc, Internal Routing, Fender Compatible
Target Application: Gravel Racing/Riding/Exploration/Adventure
Sizes (cm): 49, 52, 54, 56, 58, 60
Fork Rake. 57, 55, 53
Fork Axle to Crown: 395mm

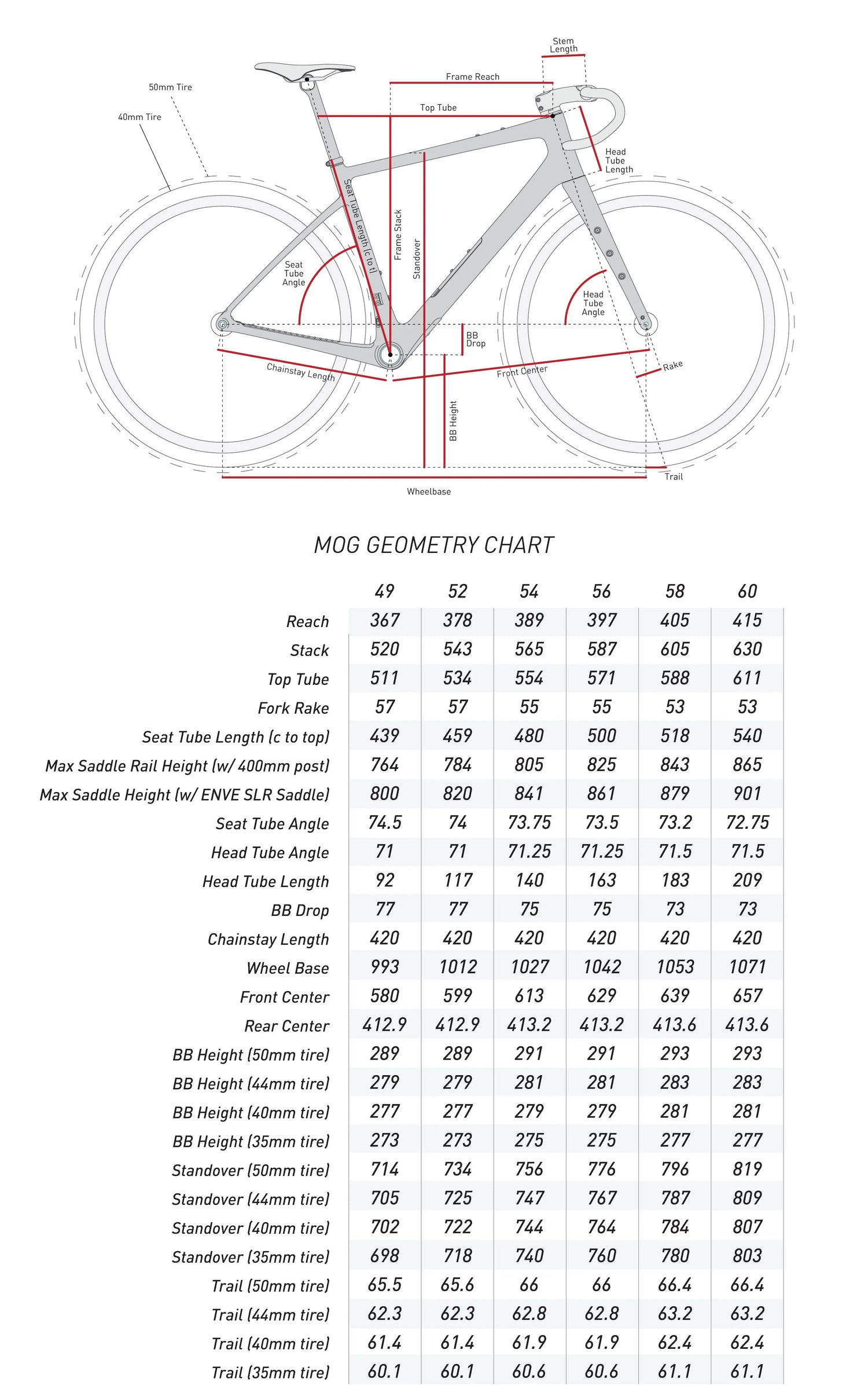

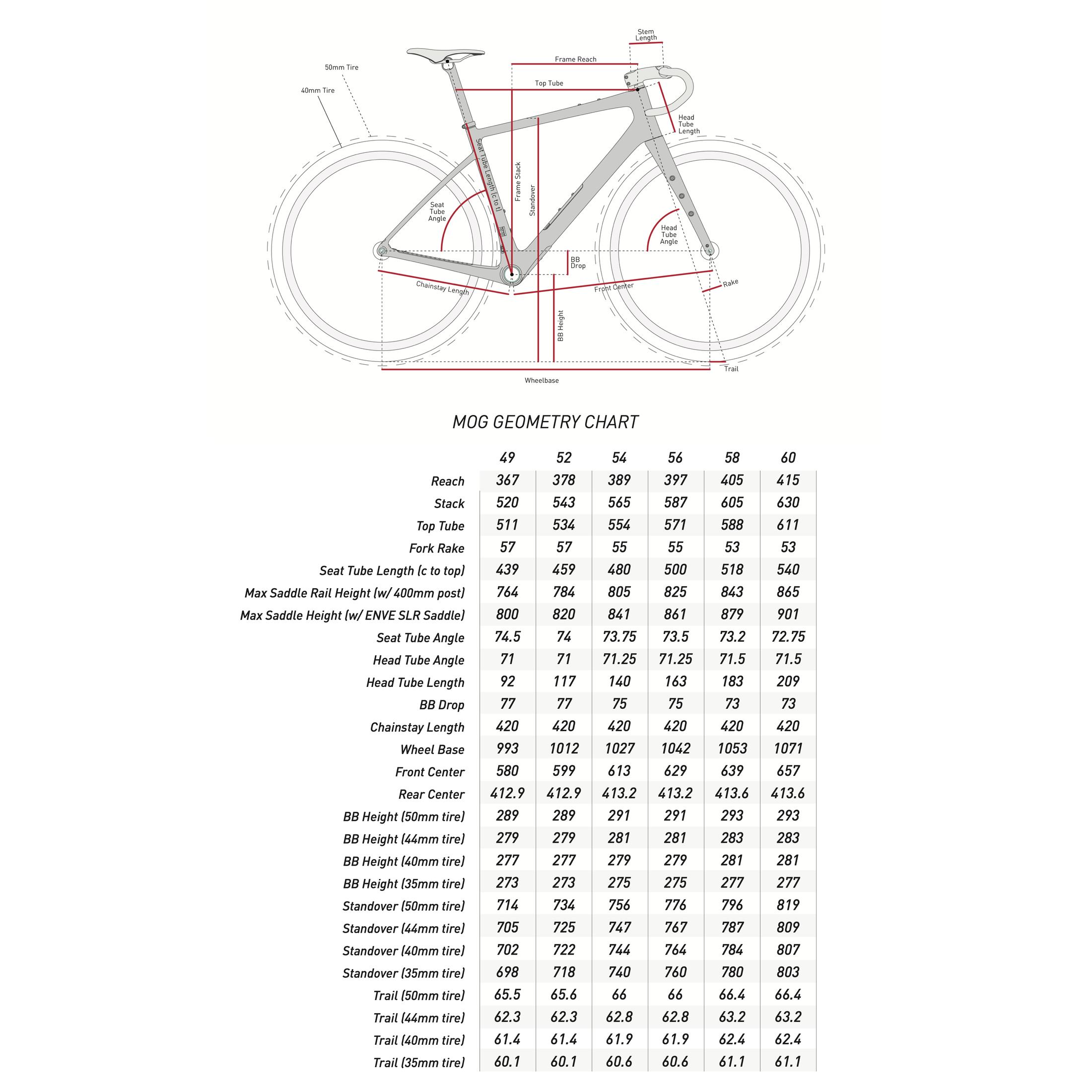

Frame Size/Fork Rake: 49cm/57, 52cm/57, 54cm/55, 56cm/55, 58cm/53, 60cm/53
Frame Weight: 950g +/- 2% (Size 56, Painted, No Hardware)
Headset: ENVE Integrated IS52/IS52 Internal Drop-In
Headset Bearing: 1.5" IS52 Upper and Lower
Seat Post Diameter: 27.2
BB Type: T47 Inboard Bearing
Brake Mount: Flat Mount
Brake Rotor Compatibility: F: 160/180, R: 140/160 (Adapters Required)
Front Axle. 12x100 (Total Length: 122, TP:1.5, TL:15)
Rear Axle: 12x142 (Total Length: 168, TP:1.0, TL:14)
Minimum Tire Size: 700 x 36c
Optimal Tire Size700 x 40c-44c
Maximum Listed Tire Clearance: 700 x 50c
Frame Routing: ENVE IN-Route Internal
Water Bottle Capacity: 3
Top Tube Mounts: Yes
Fender Mount Compatible: Yes
Wheel Size: 700C (650b Not Recommended)
