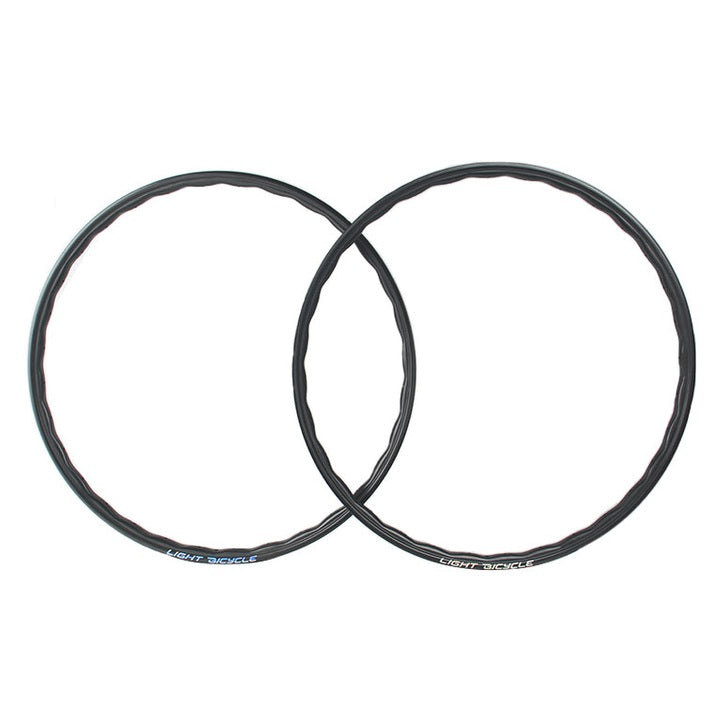

AM930S Carbon 29" All Mountain Rim - Pair

The overall depth alternates between 18.1mm to 21mm, creating a ribbed inner circumference. The unique combination of a stepped sidewall and shapely rim bed gives the carbon rim extra vertical compliance. A finely-tuned Toray T700 layup features layers of carbon nanotubes in key areas to further the vibration damping properties. Carbon nanotubes increase impact resistance by 10% without adding weight. The final result? An all-around player making light work of tough trails.

The thickened rim bead, along with the smooth edge, offers great protection for your tires when hitting an obstacle - the impact energy gets dispersed faster on the broad surface. This greatly reduces the risk of pinch flats (snakebites). The wide profile provides a stable platform with less force required to mount tires.

• Material: Toray T700 Carbon Prepregs & Carbon Nanotubes
• Size: 29"/29er (ETRTO 622mm)
• Series: RECON PRO
• Intended Use: All Mountain, XC
• Bead Type: Hookless
• Tubeless Capable: Yes

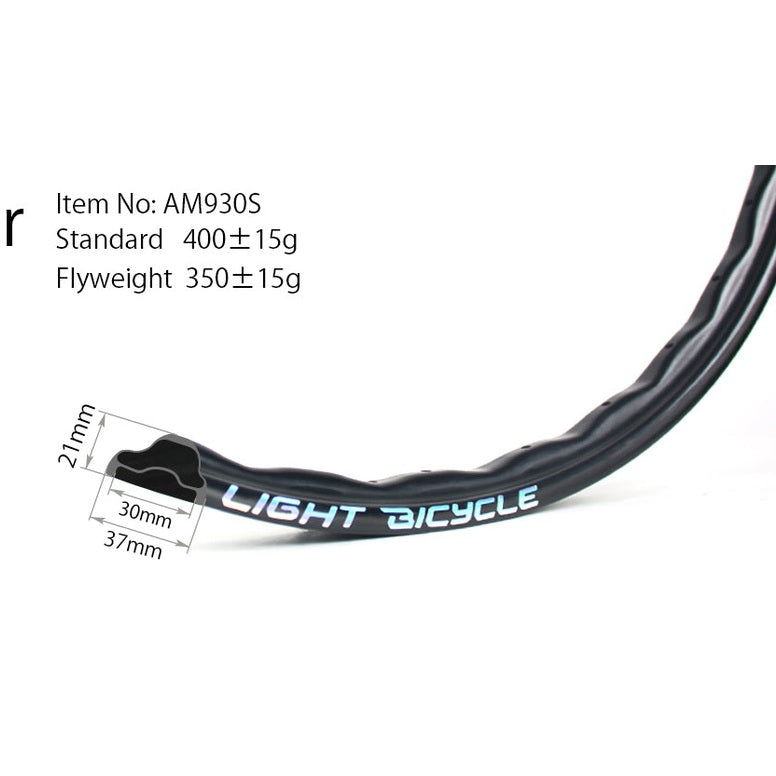

• Inner/Outer Width: 30mm/37mm
• Depth: 18.1mm~21mm
• ERD: 595.4mm (not including nipple head dimension)
• Rim Weight: Standard 400+/-15g, Flyweight 350+/-15g
• Profile: Asymmetric (3.3mm)
• Max Cyclist Weight (on flat ground): Standard 135kg/ 298lbs, Flyweight 90kg/ 198lbs
• Spoke Hole Angle: ±8°
• Spoke Tension: 115~130kgf front disc side and rear drive side
• Max Tire Pressure: 30psi/ 2.09bar
• Recommended Tire Width: 2.2" ~ 2.7"
