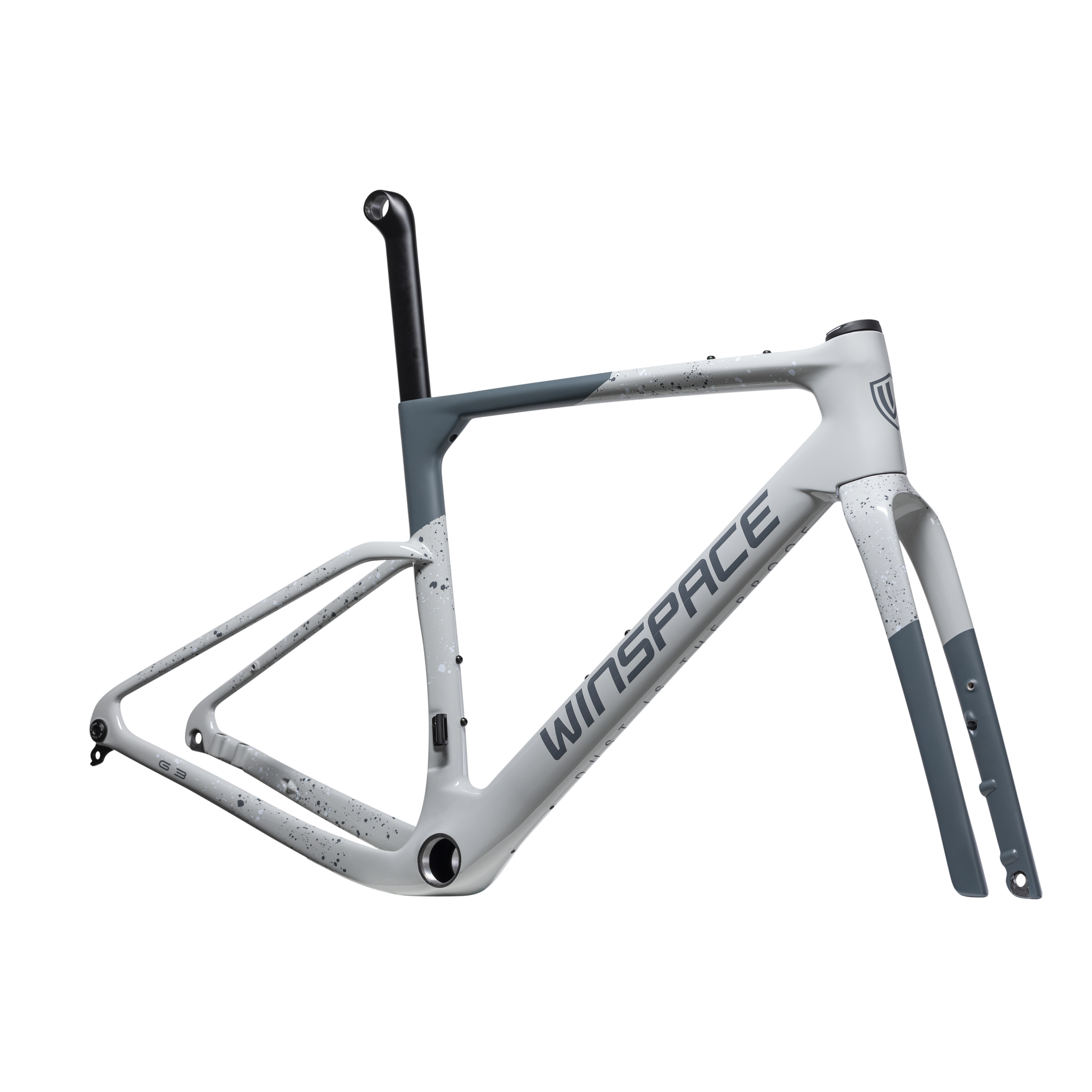

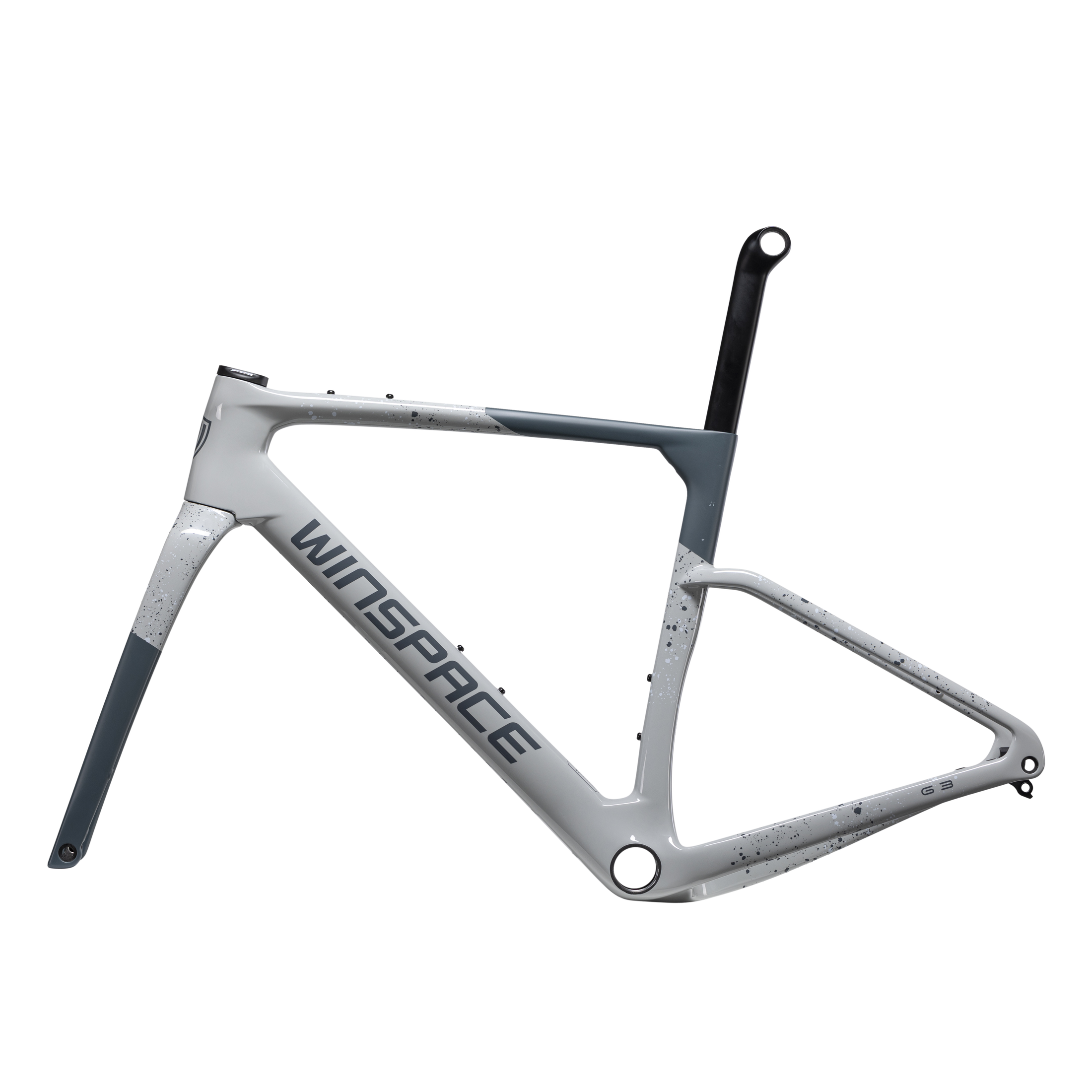

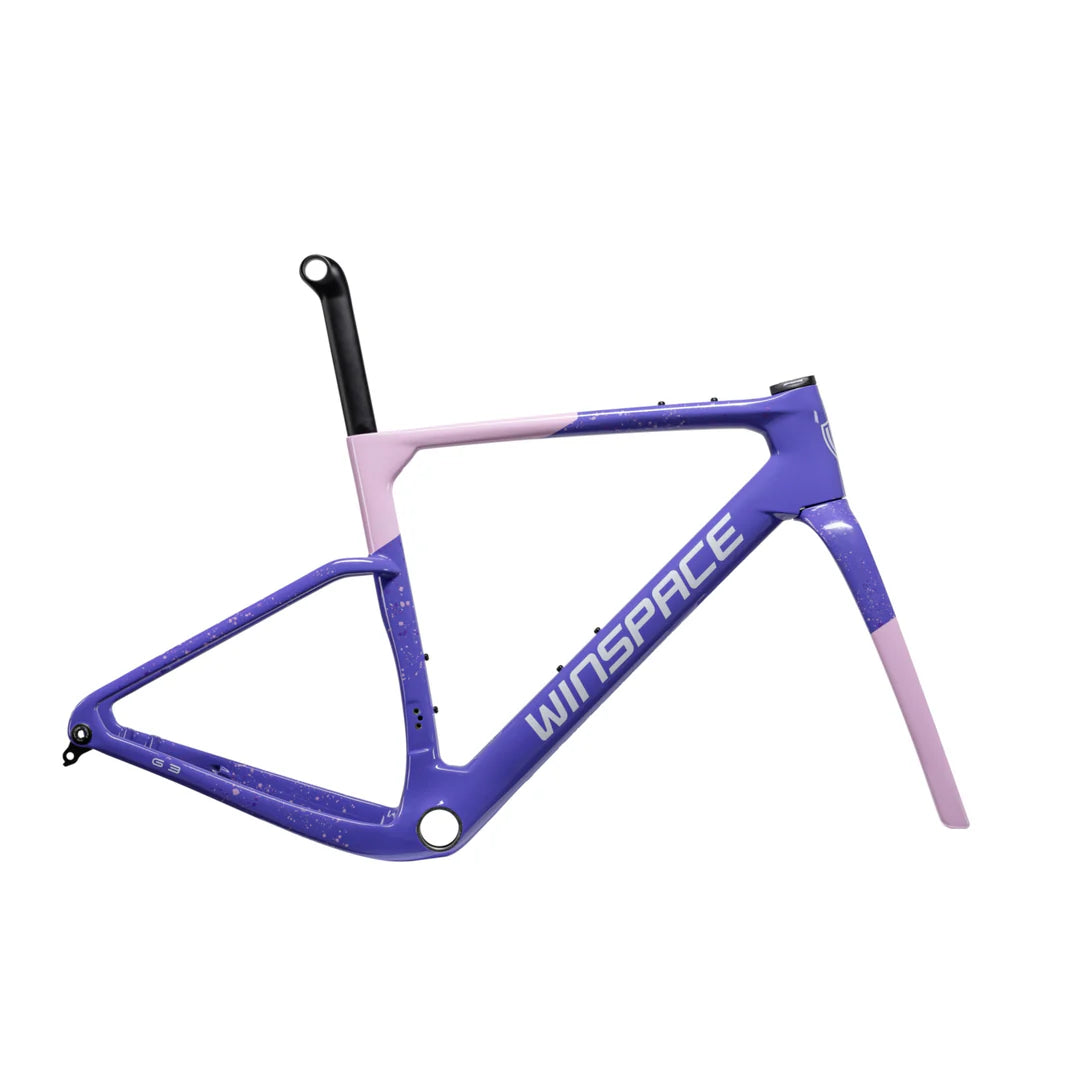

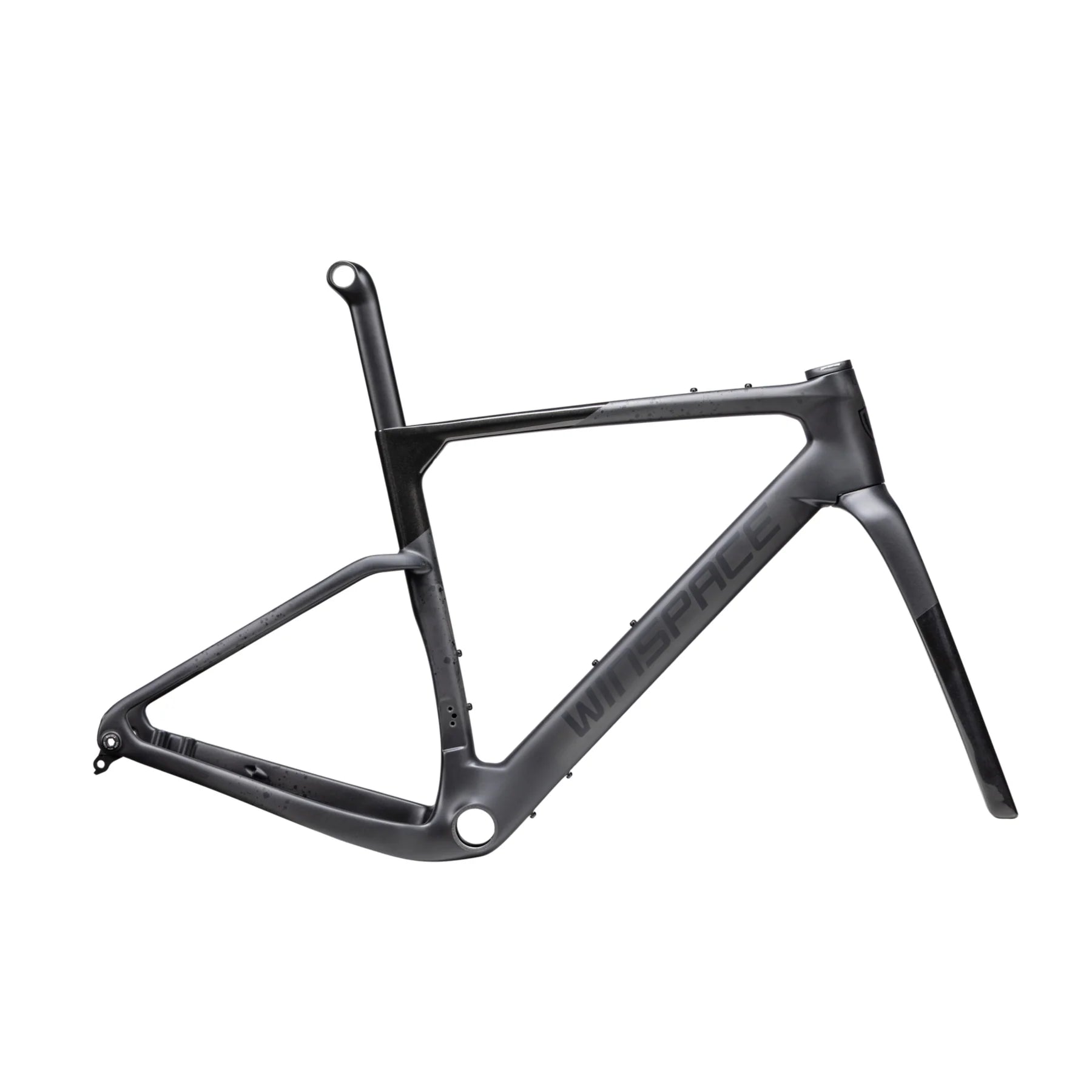

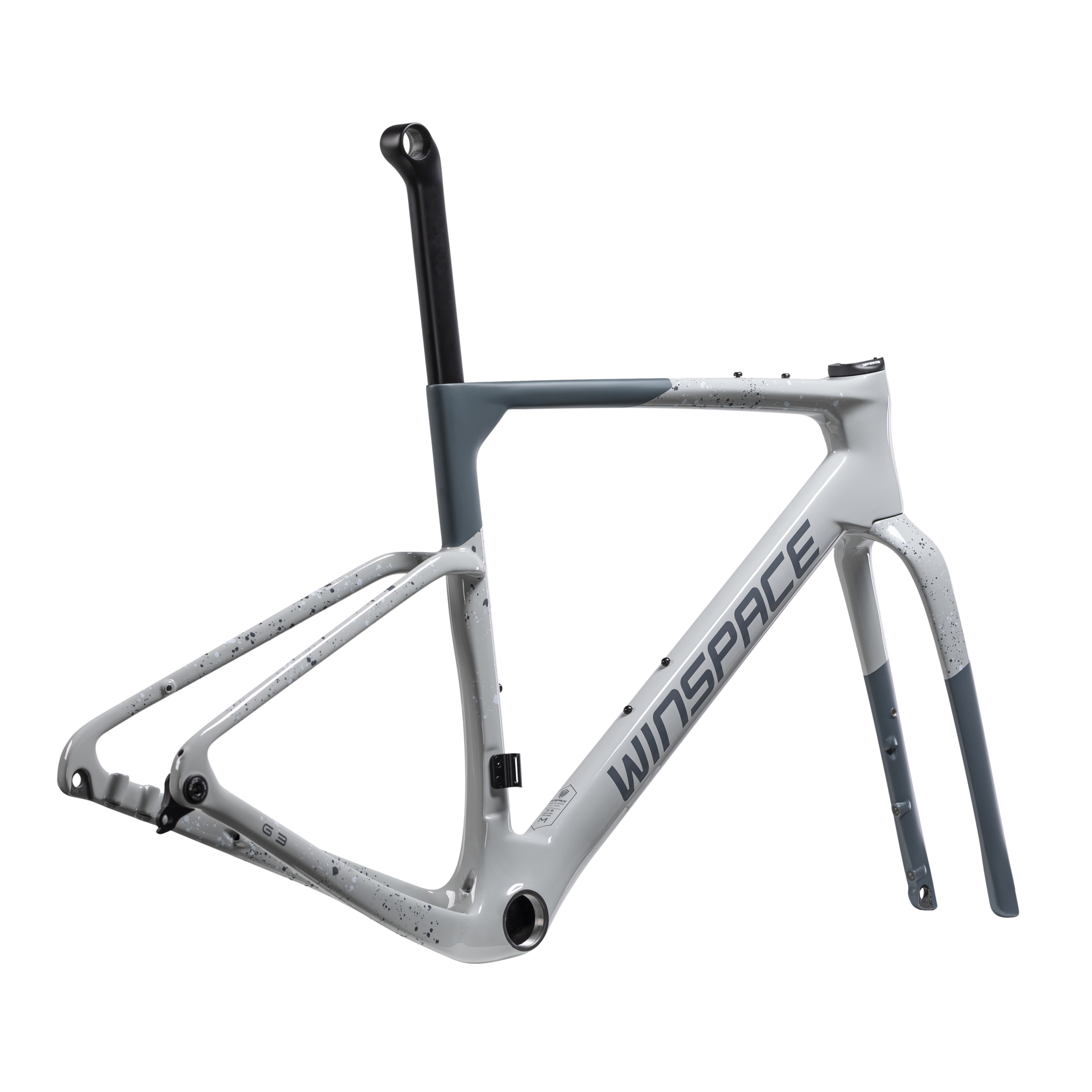

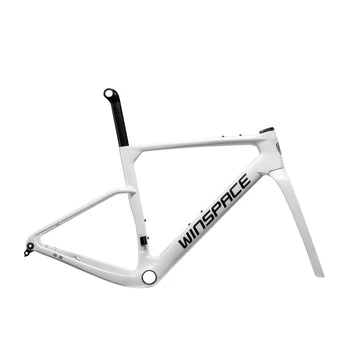

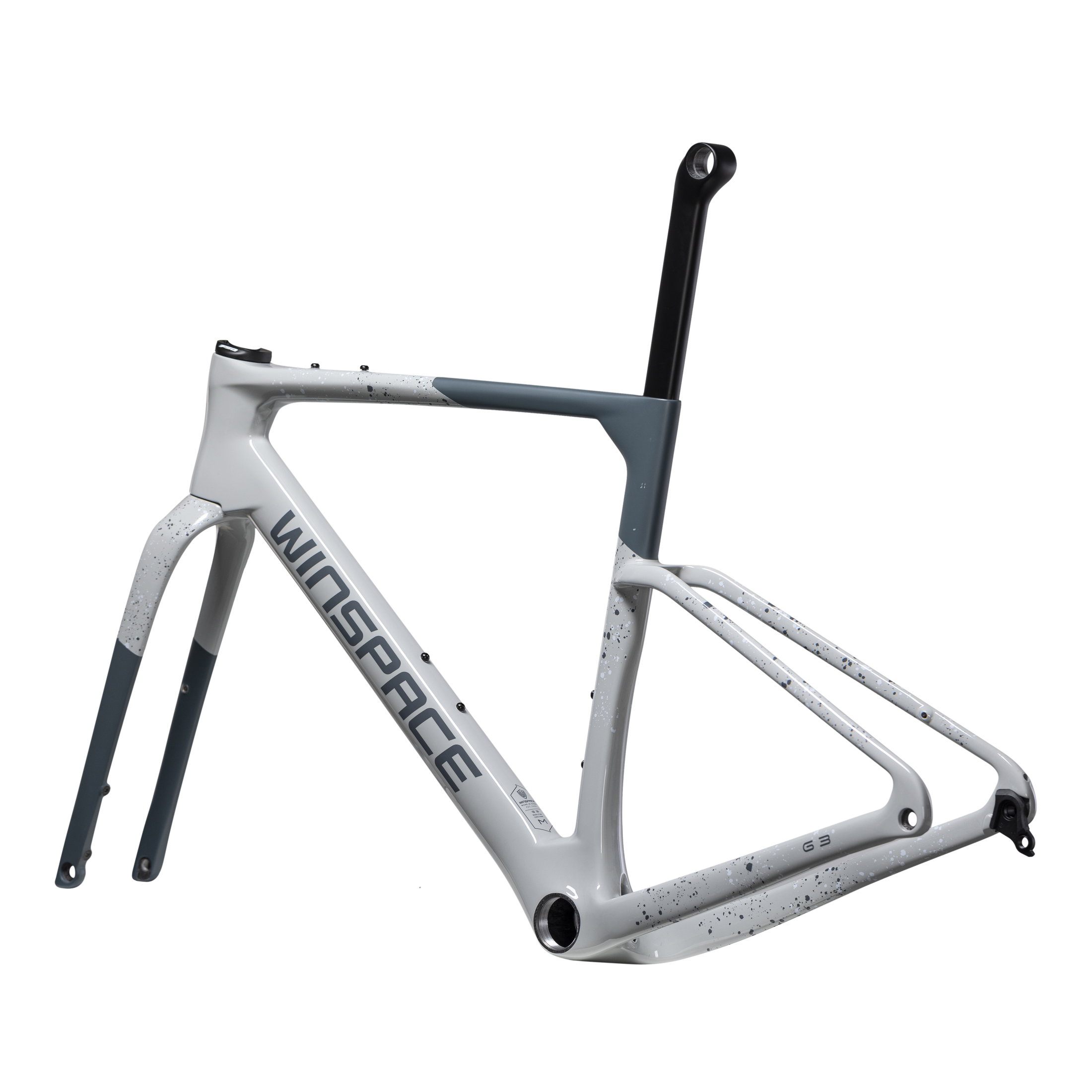

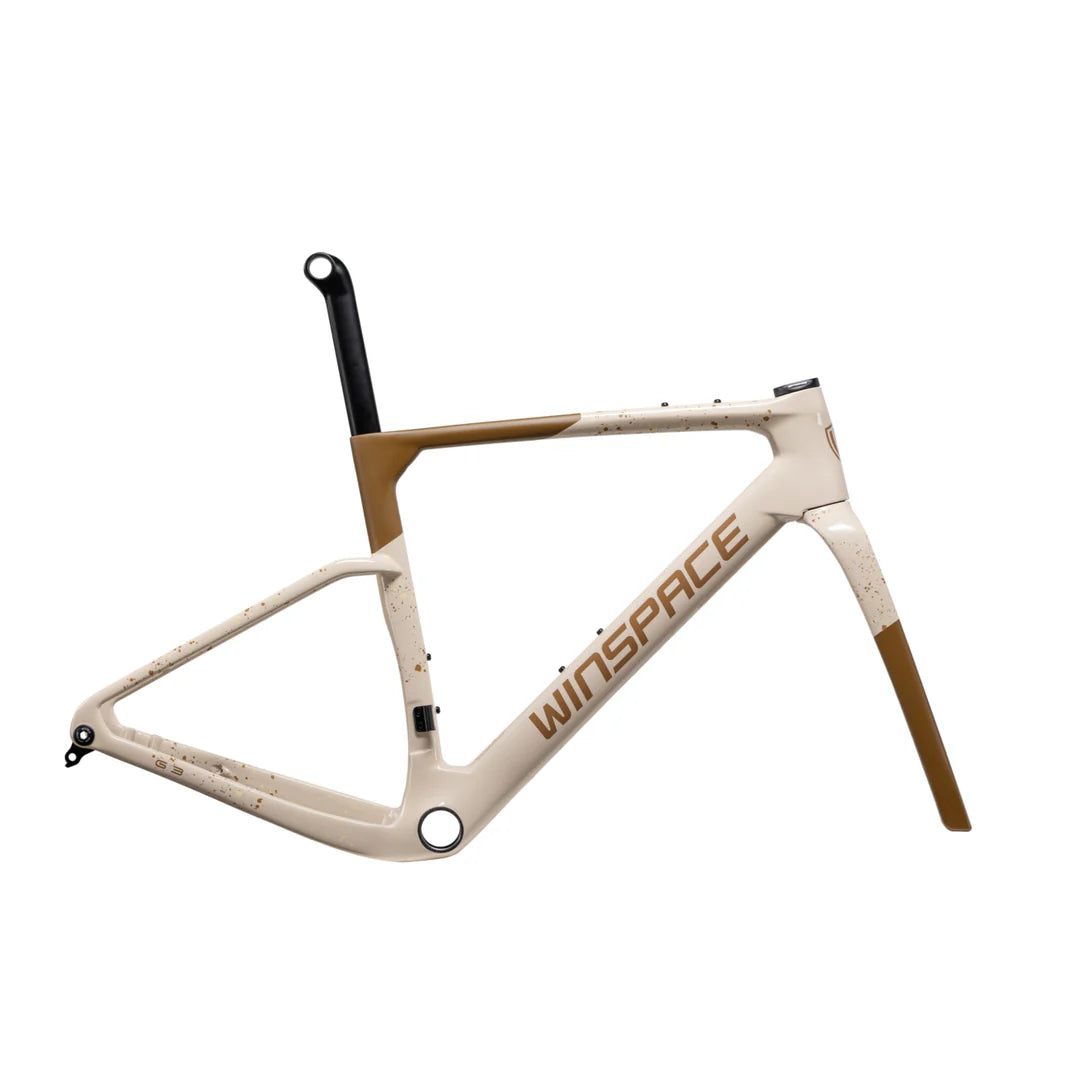

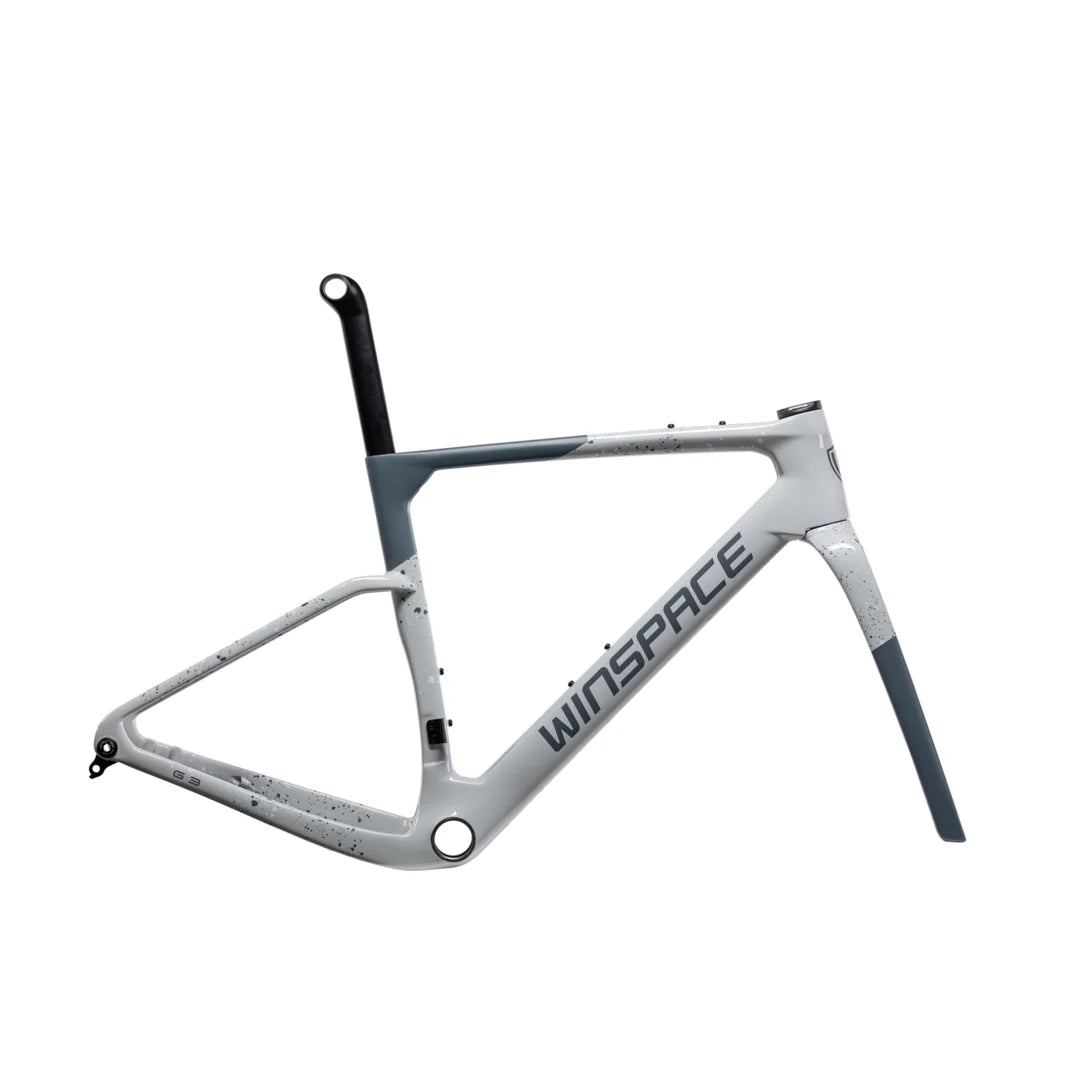

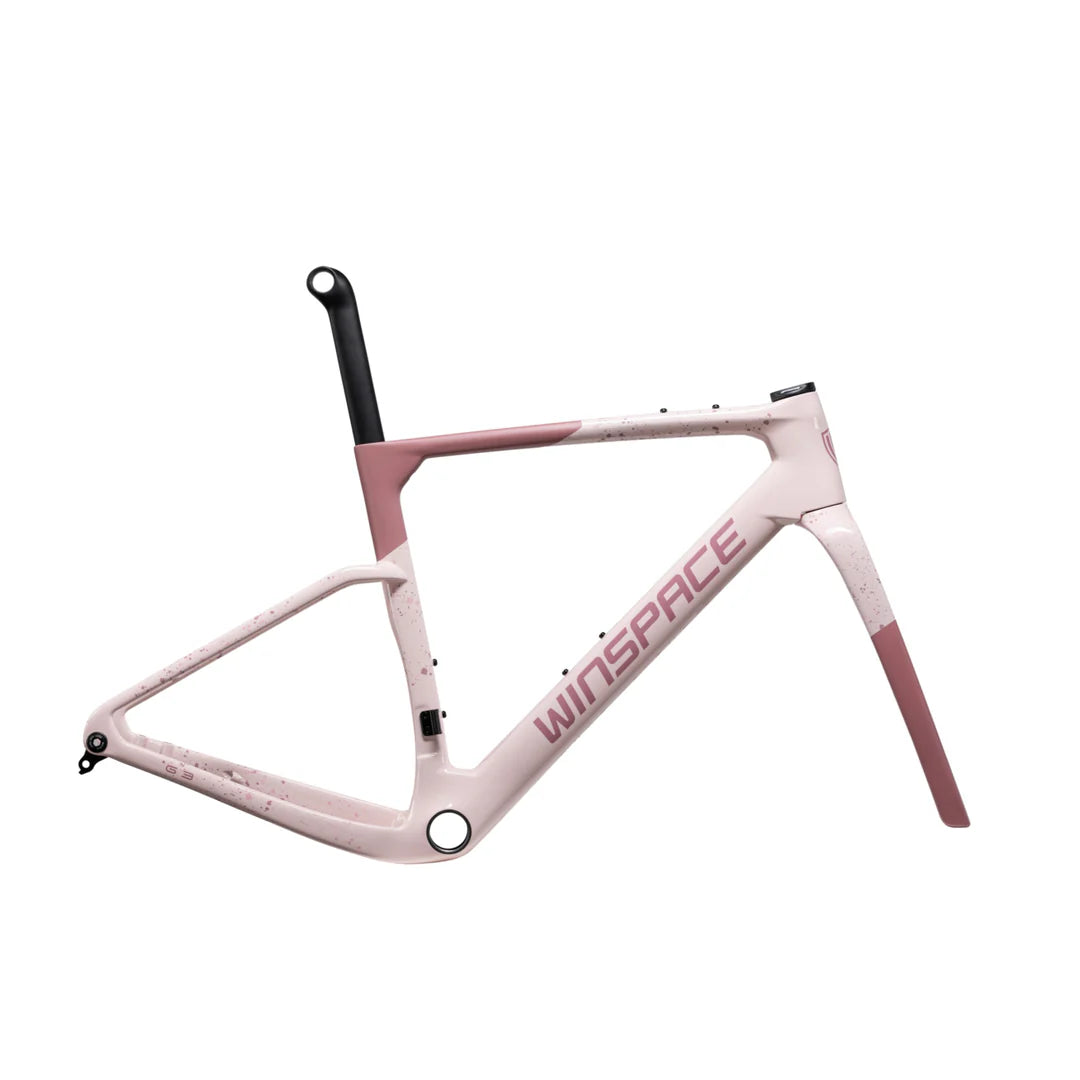

Winspace G3 Gravel Frameset

Description

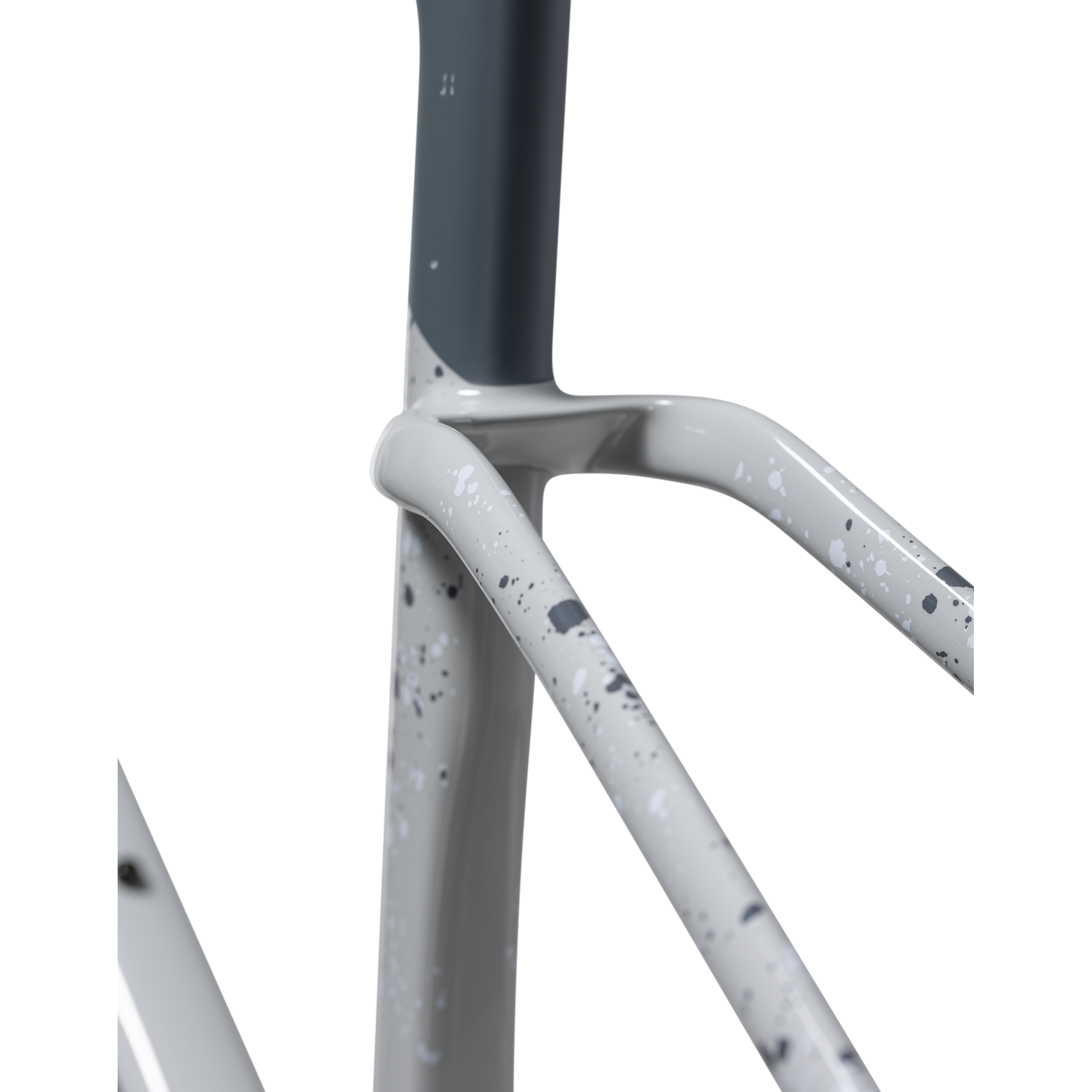

Get ready for the G3! This groundbreaking gravel frame is here, fully embracing current trends while pushing boundaries with integrated aero elements and notable weight reduction over the G2. The G3 is engineered for performance and competition, yet proudly maintains the exceptional ride quality that made the G2 a favorite.

Note: Due to production capacity, L/XL sizes are projected for August-September orders, with S/XS following in September-October.

All dates are estimates and subject to change as we diligently ramp up production. Stay tuned!

*Please note that most frames are special order. Typical delivery is 1-2 weeks.

Description:

Size: XS/S/M/L/XL (440/460/480/510/540)

Carbon Fiber Grade: T700 + T800 + M40

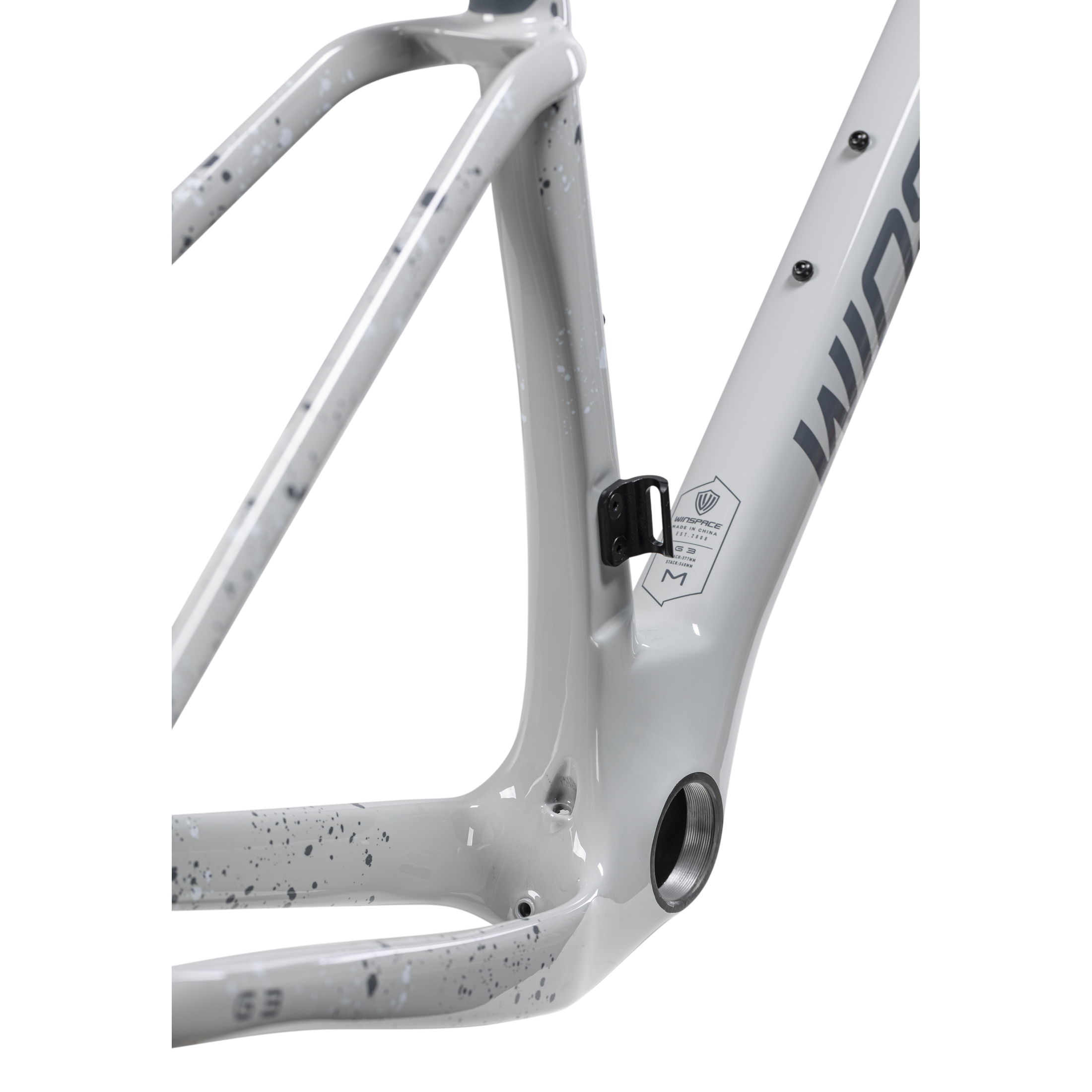

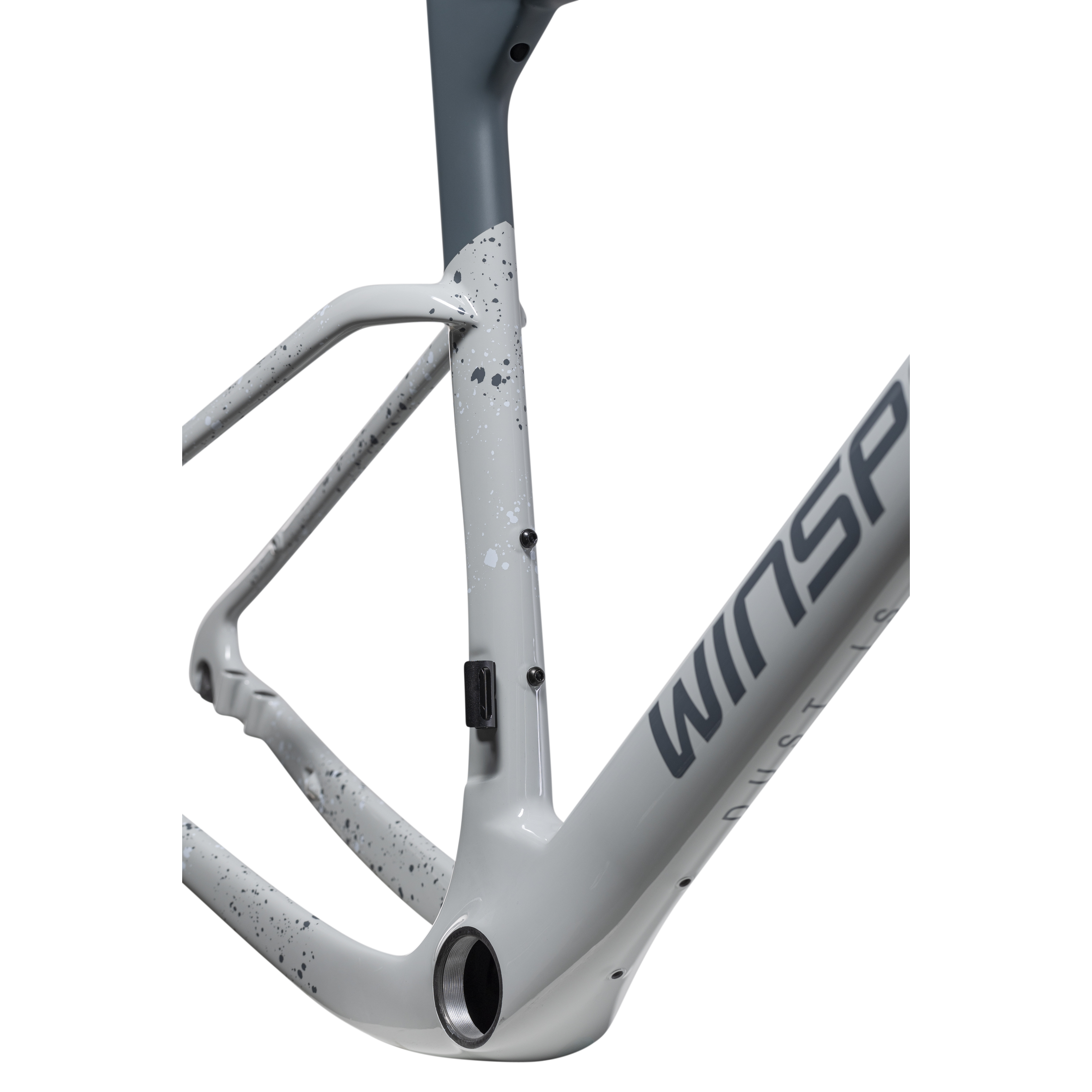

Bottom Bracket (BB): T47-68

Seatpost: Aero

Brake Type: Flat Mount Disc Brake

Axle Spacing : Front: 100mm, Rear: 142mm

Thru-Axle Dimensions:

Front: M12P1.0114L

Rear: M12P1.0163L

Max Tire Clearance: 700x50C

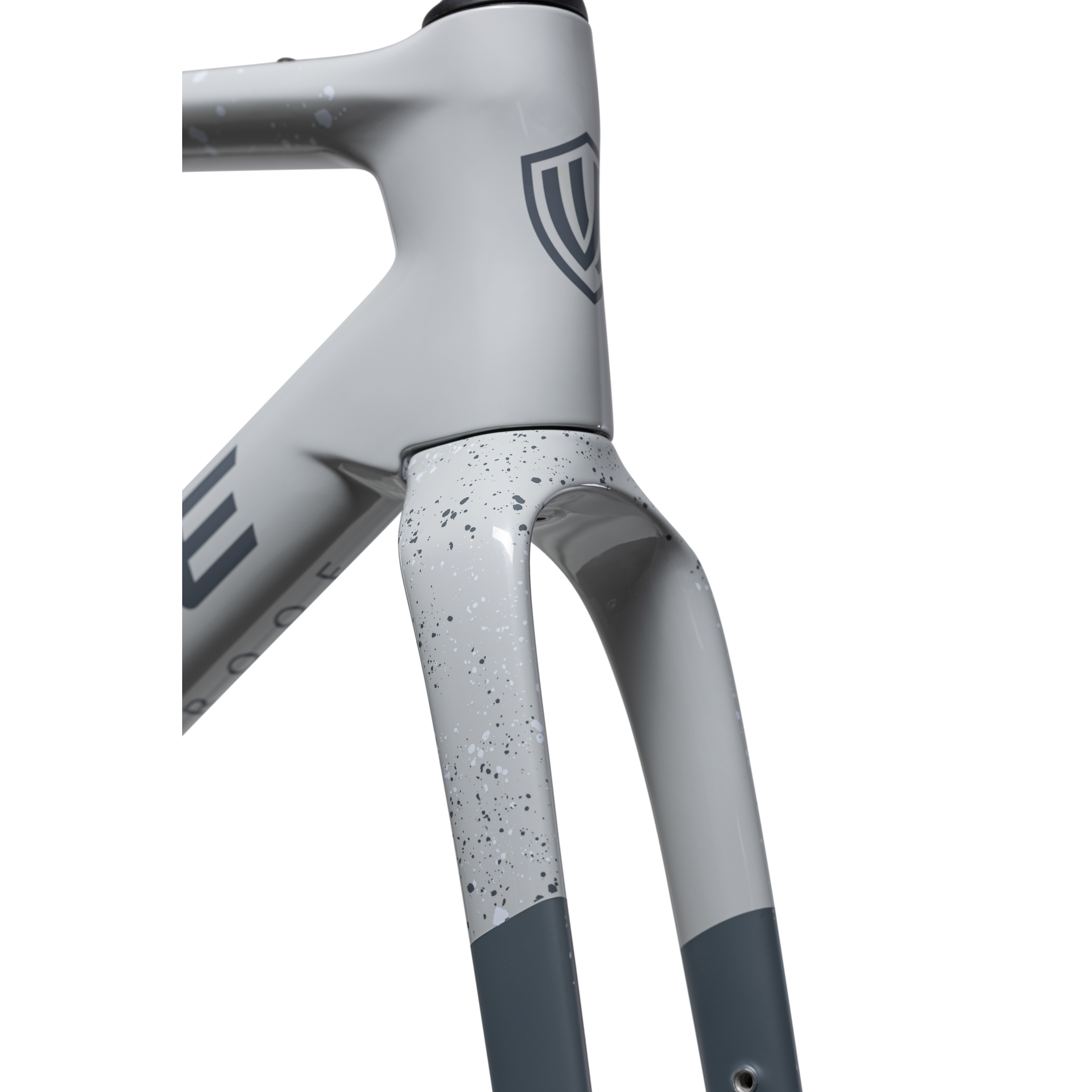

Headset: 1-1/2" / 1-1/2" (FSA ACR system)

Cable Routing: Internal

Raw Weight (approximate): Frame (M size): 950g, Fork: 450g, 360mm Seatpost: 130g

Finish: UD

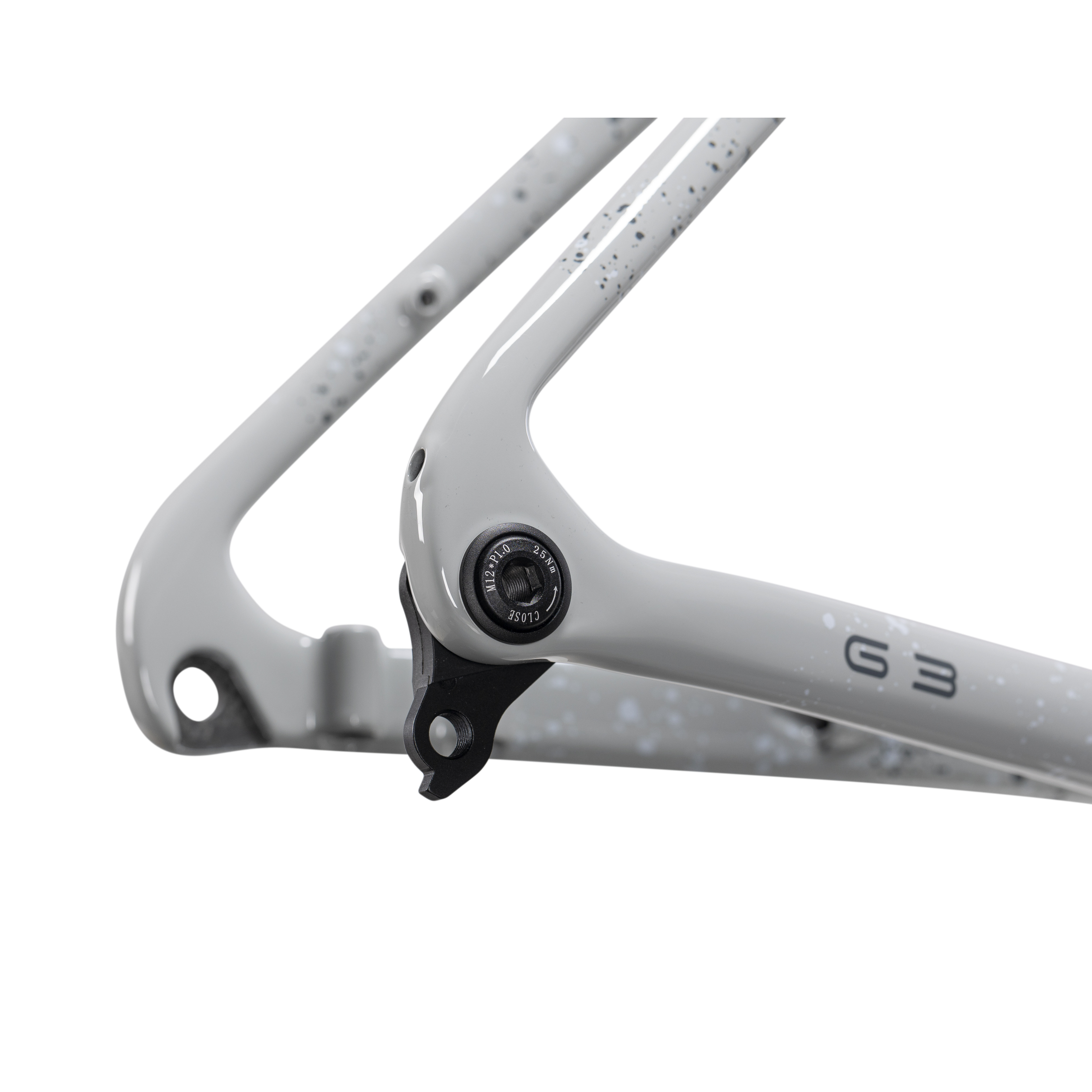

Derailleur Hanger: UDH
