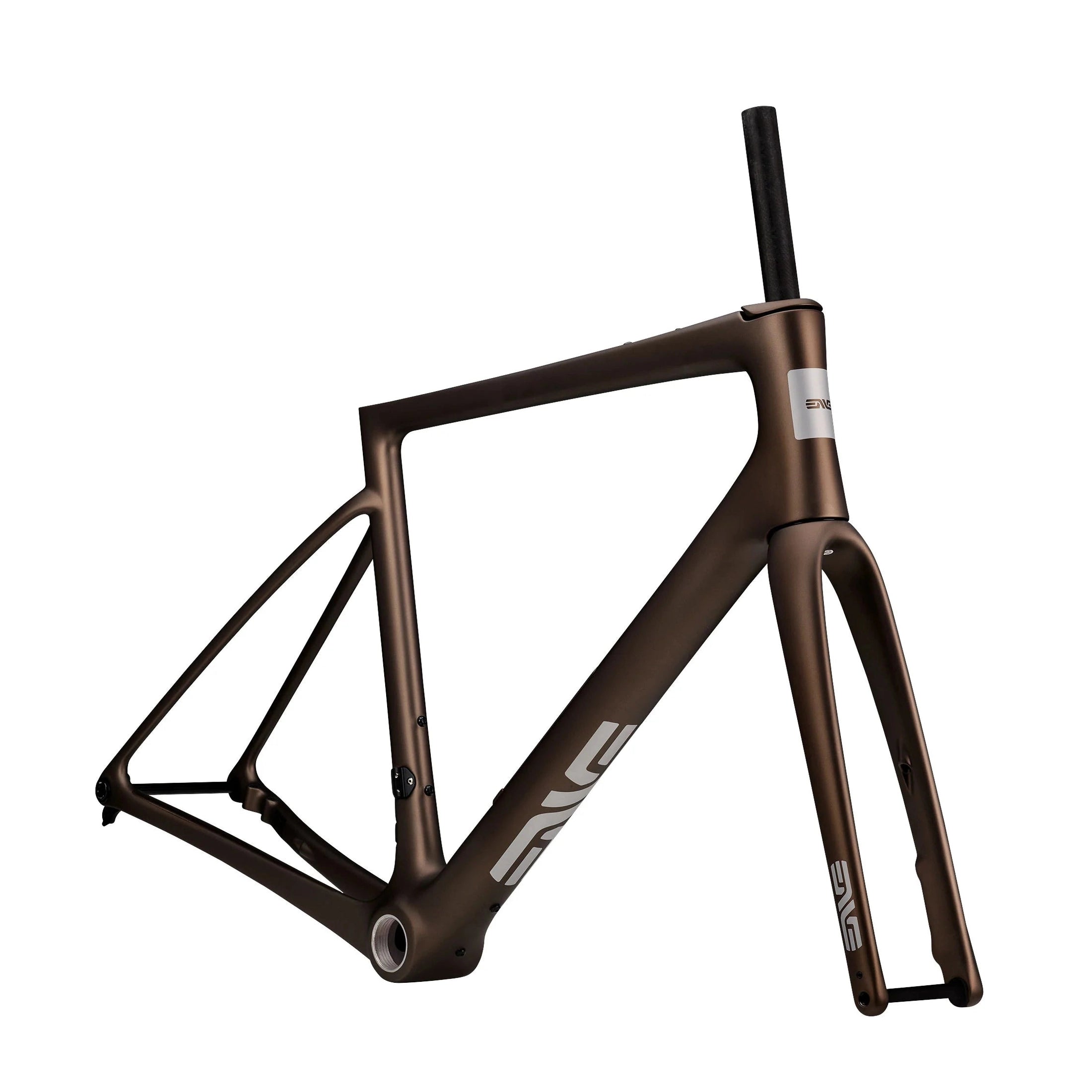

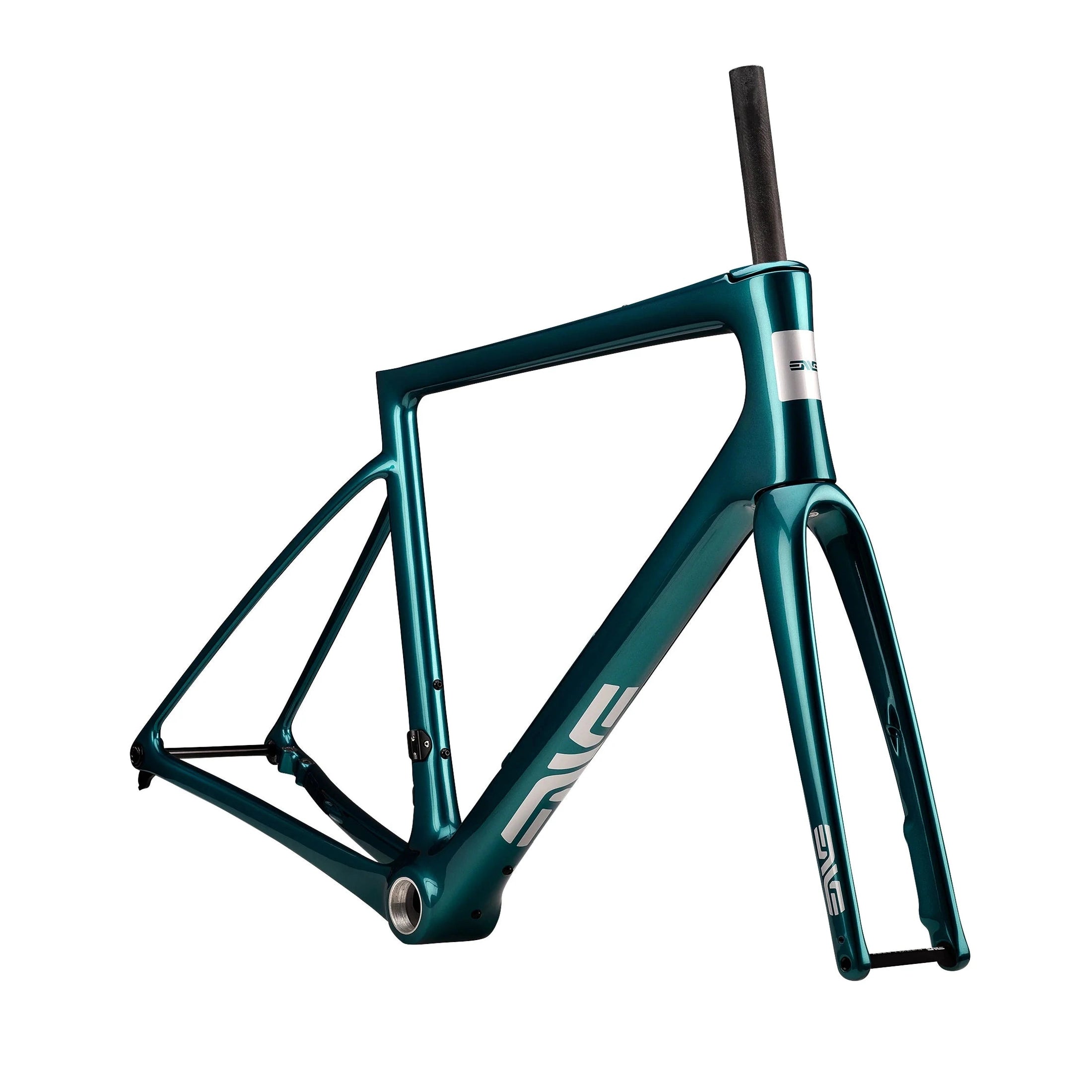

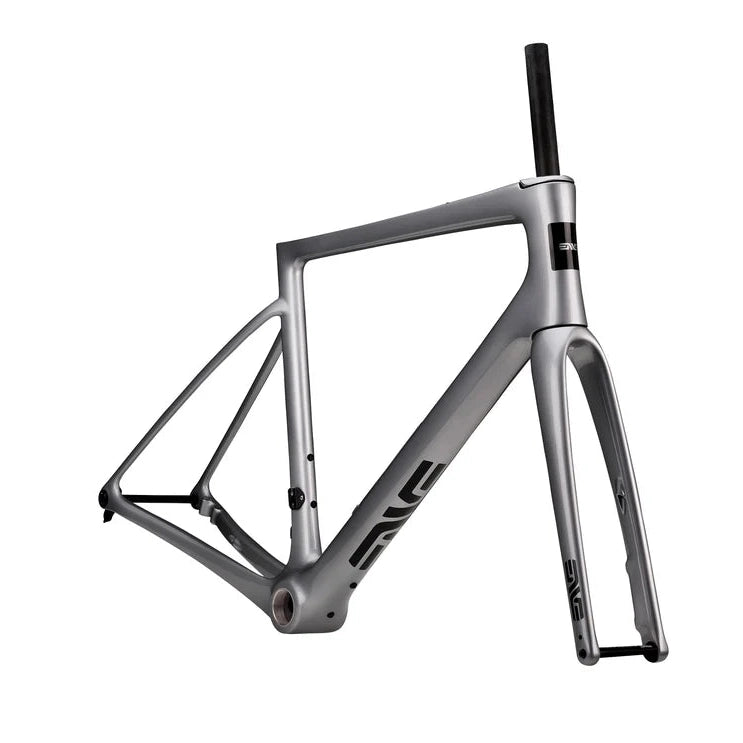

ENVE Fray Frameset

Descripción

An ENVE frameset is more than a starting point, it’s the foundation of a bike built with intention. By offering the Fray as a frameset, ENVE empowers you to craft a bike that reflects your riding priorities, personal fit, and uncompromising standards. With a broad selection of handlebar models, along with tailored options for bar dimensions, stem length, and seatpost setback, every detail of your cockpit is yours to define.

Real-World Fast™ aero optimization
Geometry optimized for 31mm - 35mm tires
Tire clearances fits up to a 700 x 40mm (1x), 700 x 38mm (2x)
ENVE Cargo Bay integrated downtube storage allows in-frame storage solution
Top tube and downtube mounts for adding bags, bottle cage, tools, or any other gear needed to tack on for big adventure rides
Aero tube shapes & design that complements SES rim shapes
Universal Derailleur Hanger (UDH) compatible allows choice of drivetrain

Frame Weight 900g (Size 56cm Painted, No Hardware)

Frame Material	ENVE M.O.D Carbon, 12x142 Thru-Axle, Flat Mount Disc, Threaded &47 BB, Internal Routing, Fender Compatible
Fork Material	ENVE M.O.D Carbon, 12x100 Thru-Axle, Flat Mount Disc, Internal Routing, Fender Compatible
Target Application	All Road / Endurance / Mixed Surface / Sportif / Fondo
Sizes (cm)	47, 50, 52, 54, 56, 58, 60
Fork Rake	55, 51, 47, 43
Frame Size/Fork Rake	47cm/55, 50cm/55, 52cm/51, 54cm/51,
Frame Size/Fork Rake	56cm/47, 58cm/47, 60cm/43
Frame Weight	900g +/- 2% (Size 56, Painted, No Hardware)
Headset	ENVE Integrated IS52/IS52 Internal Drop-In
Headset Bearing	1.5″ IS52 Upper and Lower
Seat Post Diameter	ENVE Aero
BB Type	T47 Inboard Bearing
Brake Mount	Flat Mount
Front Axle	12×100 (Total Length: 122, TP:1.5, TL:15)
Rear Axle	12×142 (Total Length: 168, TP:1.0, TL:14)
Minimum Tire Size	27mm
Optimal Tire Size	31mm - 35mm
Maximum Listed Tire Clearance 1x	40mm
Maximum Listed Tire Clearance 2x	38mm
In-Frame Storage	Yes (2 Storage Bags included - 18.22 cubic cm each)
Frame Routing	Internal
Waterbottle Capacity	3
Top Tube Mounts	Yes
Fender Compatible	Yes
Wheel Size	700c

47	50	52	54	56	58	60
Reach	365	371	377	383	389	396	403
Stack	522	540	556	573	591	610	633
Top Tube	510	524	539	552	565	581	599
Rake	55	55	51	51	47	47	43
Seattube Length(C to top)	426	445	465	480	502	519	529
Max Saddle Rail Height with 275mm Post	676	695	715	730	752	769	779
Max Saddle Rail Height with 350mm Post	701	720	740	755	777	794	804
Max Saddle Rail Height with 400mm Post	751	770	790	805	827	844	854
Seattube Angle	75	74.5	74	73.75	73.5	73.2	72.75
Headtube Angle	70.9	71.3	72	72	72.6	72.6	73.3
Headtube Length	107	125	137	157	172	194	215
Bottom Bracket Drop	78	78	78	76	76	74	74
Chainstay Length	415	415	415	415	415	417	420
Wheel Base	985	994	994	1006	1008	1024	1029
Front Center	577	586	591	598	600	613	616
Standover	699	718	738	756	777	797	824
Bottom Bracket Height (31mm Tire)	264	264	264	266	266	268	268
Trail (29mm Tire)	60.2	58	57.5	57.5	57.9	57.9	57.7
Trail (31mm Tire)	61.1	58.9	58.3	58.3	58.7	58.7	58.5
Trail (33mm Tire)	62	59.7	59.1	59.1	59.5	59.5	59.2
Trail (35mm Tire	62.8	60.6	59.9	59.9	60.3	60.3	60
